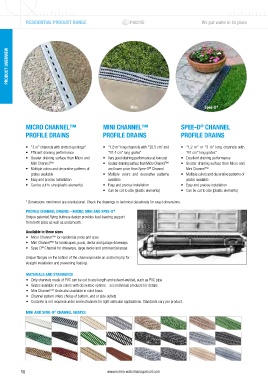

Page 18 - NORMA WM Drainage Catalogue EN

RESIDENTIAL PRODUCT RANGE We put water in its place

PRODUCT OVERVIEW

Pro Series

Micro Mini Spee-D ®

MICRO CHANNEL™ MINI CHANNEL™ SPEE-D CHANNEL
®
PROFILE DRAINS PROFILE DRAINS PROFILE DRAINS

• ”3 m” channels with slotted openings* • ”1.8 m” long channels with ”30.5 cm” and • ”1.2 m” or ”3 m” long channels with
• Efficient draining performance ”91.4cm” long grates* ”61 cm” long grates*
• Greater draining surface than Micro and • Very good draining performance at low cost • Excellent draining performance
Mini Channel™ • Greater draining surface than Micro Channel™ • Greater draining surface than Micro and
• Multiple colors and decorative patterns of and lower price than Spee-D Channel Mini Channel™
®
grates available • Multiple colors and decorative patterns • Multiple colors and decorative patterns of
• Easy and precise installation available grates available
• Can be cut to size (plastic elements) • Easy and precise installation • Easy and precise installation
• Can be cut to size (plastic elements) • Can be cut to size (plastic elements)

* Dimensions mentioned are orientational. Check the drawings or technical datasheets for exact dimensions.

PROFILE CHANNEL DRAINS – MICRO, MINI AND SPEE-D ®
Unique patented flying buttress design provides load-bearing support
from both sides as well as underneath.

Available in three sizes
• Micro Channel™ for residential pools and spas
• Mini Channel™ for landscapes, pools, decks and garage driveways
• Spee-D Channel for driveways, large decks and commercial areas
®
Unique flanges on the bottom of the channel provide an anchoring lip for
straight installation and preventing floating.

MATERIALS AND STANDARDS
• Only channels made of PVC can be cut to any length and solvent-welded, such as PVC pipe
• Grates available in six colors with decorative options – see individual products for details
• Mini Channel™ Grate also available in solid brass
• Channel system offers choice of bottom, end or side outlets
• Concrete is not required under some channels for light vehicular applications. Standards vary per product.

®
MINI AND SPEE-D CHANNEL GRATES

18 www.norma-watermanagement.com
