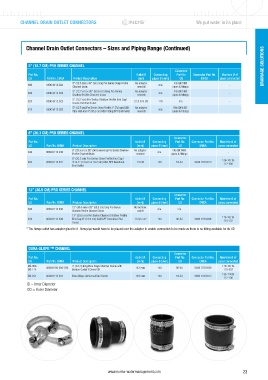

CHANNEL DRAIN OUTLET CONNECTORS We put water in its place

Channel Drain Outlet Connectors – Sizes and Piping Range (Continued)

5” (12.7 CM) PRO SERIES CHANNEL NORMACLAMP ® DRAINAGE SOLUTIONS
Connector
Part No. Outlet Ø Connecting Part No. Connector Part No. Max/min Ø of
US Part No. EMEA Product Description [mm] pipes Ø [mm] US EMEA pipes connected
5" (12.7 cm) x 40" (1m) long Pro Series Deep Profile No adapter Fits EN 1401
800 0800 6112 024 n/a -
Channel drain needed pipes & fittings
5" (12.7 cm) x 20" (50.8 cm) long Pro Series No adapter Fits EN 1401
820 0800 6112 025 n/a -
Shallow Profile Channel drain needed pipes & fittings
5" (12.7 cm) Pro Series Shallow Profile End Cap/
821 0800 6112 023 Knock Out End Outlet 21.3 mm OD 110 n/a -
811 0800 6112 022 5" (12.7 cm) Pro Series Deep Profile 3" (7.6 cm) S&D No adapter n/a Fits EN 1401
Pipe Hub and 4" (10.2 cm) S&D Fitting SPT End Outlet needed pipes & fittings

8” (20.3 CM) PRO SERIES CHANNEL
Connector
Part No. Outlet Ø Connecting Part No. Connector Part No. Max/min Ø of
US Part No. EMEA Product Description [mm] pipes Ø [mm] US EMEA pipes connected
8" (20.3 cm) x 20" (50.8 cm) long Pro Series Shallow No adapter Fits EN 1401
830 0800 6112 030 n/a -
Profile Channel Drain needed pipes & fittings
8" (20.3 cm) Pro Series Deep Profile End Cap /
831 0800 6112 031 3" & 4" (7.6 cm & 10.2 cm) S&D SPT Knockout 110 ID 110 51-44 0800 7670 013 126-107 to
117-106
End Outlet

12” (30.5 CM) PRO SERIES CHANNEL
Connector
Part No. Outlet Ø Connecting Part No. Connector Part No. Max/min Ø of
US Part No. EMEA Product Description [mm] pipes Ø [mm] US EMEA pipes connected
12" (30.5 cm) x 20" (50.8 cm) long Pro Series No bottom
840 0800 6112 038 n/a n/a -
Shallow Profile Channel Drain outlet
12" (30.5 cm) Pro Series Channel Shallow Profile
841 0800 6112 039 End Cap 4" (10.5 cm) S&D SPT Knockout End 112.6 mm* 110 56-44 0800 7670 026 118-107 to
118-107
Outlet
* The flange outlet has adapter glued to it . New pipe would have to be placed over the adapter to enable connection to be made as there is no fitting available for its OD

DURA-SLOPE ™ CHANNEL
Connector
Part No. Outlet Ø Connecting Part No. Connector Part No. Max/min Ø of
US Part No. EMEA Product Description [mm] pipes Ø [mm] US EMEA pipes connected
DS-090- 0800 6190 006-038 4' (1.2 m) long Dura Slope Channel Drains with 112 mm 110 56-44 0800 7670 026 118-107 to
DS-114 Bottom Outlet 112mm OD 118-107
126-114 to
DS-227 0800 6113 007 Dura Slope Universal End Outlet 119 mm 110 51-44 0800 7670 013
117-106
ID = Inner Diameter
OD = Outer Diameter
