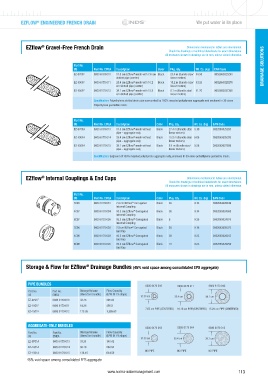

EZFLOW ENGINEERED FRENCH DRAIN We put water in its place
®

EZflow Gravel-Free French Drain Dimensions mentioned in tables are orientational.
®
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. NORMACLAMP ® DRAINAGE SOLUTIONS
US Part No. EMEA Description Color Pkg. Qty. Wt. Ea. (kg) EAN Code
EZ-0701F 0800 6170 010 17.8 cm EZflow mesh with 7.6 cm Black 27.4 m (Bundle size/ 14.58 0052063025261
®
slotted pipe (center) linear meters)
EZ-1001F 0800 6170 011 25.4 cm EZflow mesh with 10.2 Black 15.2 m (Bundle size/ 13.28 0052063025278
®
cm slotted pipe (center) linear meters)
®
EZ-1501F 0800 6170 012 38.1 cm EZflow mesh with 15.2 Black 6.1 m (Bundle size/ 11.70 0052063027302
cm slotted pipe (center) linear meters)
Specification: Polyethylene slotted drain pipe surrounded by 100% recycled polystyrene aggregate and enclosed in 30-sieve
Polyethylene geotextile mesh.

Part No.
US Part No. EMEA Description Color Pkg. Qty. Wt. Ea. (kg) EAN Code
EZ-0701A 0800 6170 013 17.8 cm EZflow mesh without Black 27.4 m (Bundle size/ 8.10 0052063025285
®
pipe – aggregate only linear meters)
EZ-1001A 0800 6170 014 25.4 cm EZflow mesh without Black 15.2 m (Bundle size/ 6.08 0052063025292
®
pipe – aggregate only linear meters)
EZ-1501A 0800 6170 015 38.1 cm EZflow mesh without Black 6.1 m (Bundle size/ 5.58 0052063027296
®
pipe – aggregate only linear meters)
Specification: Segment of 100% recycled polystyrene aggregate only, enclosed in 30-sieve polyethylene geotextile mesh.

EZflow Internal Couplings & End Caps Dimensions mentioned in tables are orientational.
®
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
Part No.
US Part No. EMEA Description Color Pkg. Qty. Wt. Ea. (kg) EAN Code
3C05 0800 6170 001 7.6 cm EZflow Corrugated Black 30 0.14 0052063020198
®
Internal Coupling
®
4C07 0800 6170 004 10.2 cm EZflow Corrugated Black 36 0.14 0052063024868
Internal Coupling
6C07 0800 6170 006 15.2 cm EZflow Corrugated Black 8 0.36 0052063024875
®
Internal Coupling
3C06 0800 6170 002 7.6 cm EZflow Corrugated Black 20 0.14 0052063020372
®
End Cap
4C06 0800 6170 003 10.2 cm EZflow Corrugated Black 30 0.23 0052063020242
®
End Cap
6C06 0800 6170 005 15.2 cm EZflow Corrugated Black 10 0.23 0052063020259
®
End Cap
®
Storage & Flow for EZflow Drainage Bundles (45% void space among consolidated EPS aggregate)

PIPE BUNDLES 0800 6170 010 0800 6170 011 EZ-1501FB
0800 6170 012
Part No. Part No. Storage Volume Flow Capacity
US EMEA (liters/3 m bundle) (LPM @ 1% slope)
15"
17.78 cm 25.4 cm 38.1 cm
EZ-0701F 0800 6170 010 43.15 305.83
EZ-1001F 0800 6170 011 81.38 495.5
6" PIPE (BOTTOM)
7.62 cm PIPE (CENTERED) 10.16 cm PIPE (CENTERED) 15.24 cm PIPE (CENTERED)
EZ-1501F 0800 6170 012 173.35 1,305.83
AGGREGATE-ONLY BUNDLES
0800 6170 013 0800 6170 014 0800 6170 015
Part No. Part No. Storage Volume Flow Capacity
US EMEA (liters/3 m bundle) (LPM @ 1% slope)
17.78 cm 25.4 cm 38.1 cm
EZ-0701A 0800 6170 013 33.31 140.42
EZ-1001A 0800 6170 014 65.10 286.52
NO PIPE NO PIPE NO PIPE
EZ-1501A 0800 6170 015 138.15 644.59
45% void space among consolidated EPS aggregate
