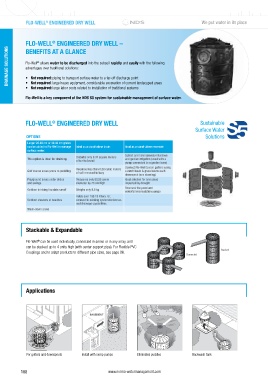

Page 108 - NORMA WM Drainage Catalogue EN

FLO-WELL ENGINEERED DRY WELL We put water in its place
®

FLO-WELL ENGINEERED DRY WELL –
®
DRAINAGE SOLUTIONS Flo-Well allows water to be discharged into the subsoil rapidly and easily with the following
BENEFITS AT A GLANCE

®
advantages over traditional solutions:

• Not required: piping to transport surface water to a far-off discharge point
• Not required: large heavy equipment, considerable excavation of current landscaped areas
• Not required: large labor costs related to installation of traditional systems
Flo-Well is a key component of the NDS S5 system for sustainable management of surface water.

FLO-WELL ENGINEERED DRY WELL Sustainable
®
Surface Water
OPTIONS Solutions
Larger 22.86 cm or 30.48 cm grates
can be added to Flo-Well to manage Ideal as a stand-alone drain: Ideal as a stand-alone reservoir:
surface water.
Collect and hold rainwater for lawn FSW69
Disturbs only 0.37 square meters
This option is ideal for draining: and garden irrigation (used with a
of turf to install
pump connected to a garden hose)
Connect Flo-Well to rain gutters using
Requires less than 0.28 cubic meters
Golf course areas prone to puddling a catch basin & grate below each
of soil removed to bury
downspout (see drawing)
Playground areas under slides Measures only 60.96 cm in Ideal solution for arid areas
and swings diameter by 73 cm high impacted by drought
Reservoir for pond and
Outdoor drinking fountain runoff Weighs only 9.9 kg
waterfall recirculation pumps
Holds over 180.19 litters. Or,
Outdoor showers at beaches connect to existing system for increa-
sed drainage capabilities
Wash-down areas

Stackable & Expandable
Connected Stacked
Flo-Well can be used individually, connected in series or in any array, and
®
can be stacked up to 4 units high (with center support pipe). For Flexible PVC
Couplings and to adapt products to different pipe sizes, see page 86. Stacked
Connected

Applications

For gutters and downspouts Install with sump pumps Eliminates puddles Backwash tank

For gutters and downspouts Install with sump pumps Eliminates puddles Backwash tank
