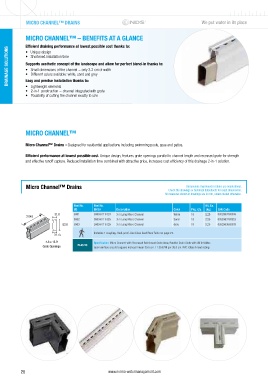

Page 28 - NORMA WM Drainage Catalogue EN

MICRO CHANNEL™ DRAINS We put water in its place

MICRO CHANNEL™ – BENEFITS AT A GLANCE
Efficient draining performance at lowest possible cost thanks to:
DRAINAGE SOLUTIONS • Shortened installation time
• Unique design

Supports aesthetic concept of the landscape and allow for perfect blend-in thanks to:
• Small dimensions of the channel − only 3.2 cm of width
• Different colors available: white, sand and grey
Easy and precise installation thanks to:
• Lightweight elements
• 2-in-1 construction − channel integrated with grate
• Possibility of cutting the channel exactly to size

MICRO CHANNEL™

Micro Channel™ Drains – Designed for residential applications including swimming pools, spas and patios.
Efficient performance at lowest possible cost. Unique design, features grate openings parallel to channel length and recessed grate for strength
and effective runoff capture. Reduced installation time combined with attractive price, increases cost efficiency of this drainage 2-in-1 solution.

Micro Channel™ Drains Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea.
Micro Channel
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1 1/4" 31.8 8001 0800 6111 024 3 m Long Micro Channel White 10 2.25 0052063780016
3 048
8002 0800 6111 025 3 m Long Micro Channel Sand 10 2.25 0052063780023
3 1/4" 82.6 8003 0800 6111 026 3 m Long Micro Channel Gray 10 2.25 0052063680033
Includes 1 coupling. Heel-proof. See Class Load Rate Table on page 21.
31.75
1 1/4"
4.8 x 15.9 Specification: Micro Channel with Recessed Reinforced Grate Area, Parallel Drain Slots with UV inhibitor.
NDS#8001 AI.eps PLASTIC
Grate Openings Open surface area 6.5 square inch per linear 30.5 cm. 11.36 LPM per 30.5 cm. PVC. Class A load rating.
