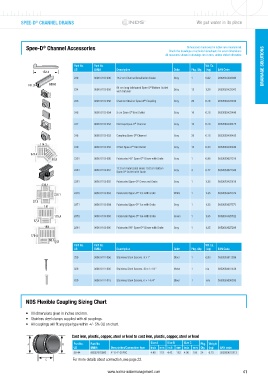

Page 41 - NORMA WM Drainage Catalogue EN

SPEE-D CHANNEL DRAINS We put water in its place
®

Spee-D Channel Accessories Dimensions mentioned in tables are orientational.
®
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
152.4
230 0800 6113 009 15.2 cm Channel Installation Stake Gray 1 0.02 0052063302300
161.9 609.6
®
234 0800 6113 058 61 cm long fabricated Spee-D Bottom Outlet Gray 12 1.20 0052063422343
NDS_234.eps with Strainer
2’ Spee-d Channel
Spigot Bottom Outlet
®
NDS#245 AI.eps 245 0800 6113 056 Channel Strainer Spee-D Coupling Gray 20 0.16 0052063422459
246 0800 6113 054 5 cm Spee-D End Outlet Gray 10 0.18 0052063422466
®
NDS_246.eps
2” Schedule 40 SPT End Outlet ®
247 0800 6113 052 End Cap Spee-D Channel Gray 10 0.18 0052063402475
NDS-247.eps
NDS#248 AI.eps
Spee-D Channel End Outlet
248 0800 6113 053 Coupling Spee-D Channel Gray 20 0.18 0052063402482
®
NDS#249 AI.eps
114.3
®
249 0800 6113 055 Offset Spee-D End Outlet Gray 10 0.23 0052063402499
179.4
®
88.9 2301 0800 6113 060 Fabricated 45° Spee-D Elbow with Grate Gray 1 0.90 0052063027319
17.8 cm Fabricated Grate 10.2 cm Bottom
2351 0800 6113 061 Gray 3 0.77 0052063027326
®
Spee-D Outlet with Grate
2361 0800 6113 062 Fabricated Spee-D Cross and Grate Gray 1 1.35 0052063422619
®
238.1
®
238.1 2370 0800 6113 063 Fabricated Spee-D Tee with Grate White 1 1.35 0052063422374
57.2
2371 0800 6113 064 Fabricated Spee-D Tee with Grate Gray 1 1.35 0052063027272
®
181
®
179.4 2372 0800 6113 065 Fabricated Spee-D Tee with Grate Green 1 1.35 0052063423722
57.2
189 2381 0800 6113 066 Fabricated 90° Spee-D Elbow with Grate Gray 1 1.35 0052063027289
®
179.4
66.7 15.9
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
229 0800 6111 050 Stainless Steel Screws. 8 x 1" Steel 1 0.03 0052063812298

629 0800 6111 002 Stainless Steel Screws. 20 x 1-1/2" Metal 1 n/a 0052063041438

829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295

NDS Flexible Coupling Sizing Chart

• All dimensions given in inches and mm.
• Stainless steel clamps supplied with all couplings.
• All couplings will fit any pipe type within +/- 5% OD on chart.

Cast iron, plastic, copper, steel or lead to cast iron, plastic, copper, steel or lead

A B Part No. Part No. Size A Size B Size C Pkg. Weight
US EMEA Description/Connection type Inch mm Inch mm Inch mm Qty. (kg) EAN code
56-44 08007670026 4" X 4" CI/PVC 4.42 112 4.42 112 4.00 101 24 0.75 052063010113
C For more details about connection, see page 22.
