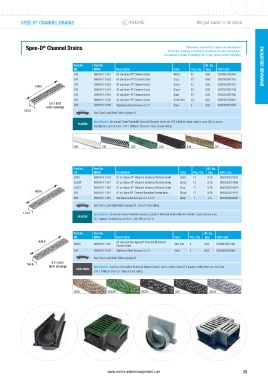

Page 39 - NORMA WM Drainage Catalogue EN

SPEE-D CHANNEL DRAINS We put water in its place
®

Spee-D Channel Drains Dimensions mentioned in tables are orientational.
®
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
240 0800 6111 051 61 cm Spee-D Channel Grate White 12 0.60 0052063422404
®
®
241 0800 6111 052 61 cm Spee-D Channel Grate Gray 12 0.60 0052063001715
242 0800 6111 053 61 cm Spee-D Channel Grate Green 12 0.60 0052063001722
®
609.6
243 0800 6111 054 61 cm Spee-D Channel Grate Black 12 0.60 0052063001739
®
244 0800 6111 055 61 cm Spee-D Channel Grate Sand 12 0.60 0052063001746
®
251 0800 6111 056 61 cm Spee-D Channel Grate Brick Red 12 0.64 0052063422510
®
9.5 x 82.6 229 0800 6111 050 Stainless Steel Screws. 8 x 1" Steel 1 0.03 0052063812298
Grate Openings
NDS#240 AI.eps
104.8
See Class Load Rate Table on page 21.
Specification: Structural Foam Polyolefin Secured Channel Grate with UV inhibitor. Open surface area 108.1 square
PLASTIC
centimeters per 30.5 cm. 194.1 LPM per 30.5 cm. Class B load rating.
240 241 242 243 244 251

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
252S 0800 6111 019 61 cm Spee-D Channel Botanical Pattern Grate Sand 12 0.78 0052063031231
®
252GR 0800 6111 017 61 cm Spee-D Channel Botanical Pattern Grate Green 12 0.78 0052063031248
®
®
252GY 0800 6111 018 61 cm Spee-D Channel Botanical Pattern Grate Gray 12 0.78 0052063031224
609.6 252 0800 6111 014 61 cm Spee-D Channel Botanical Pattern Grate Black 12 0.78 0052063031194
®
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
See Class Load Rate Table on page 21. Class B load rating..
112.2 Specification: Structural Foam Polyolefin botanical pattern Channel Grate with UV inhibitor. Open surface area
PLASTIC
35.1 square centimeters per 0.3 m. 63 LPM per 0.3 m.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
609.6 61 cm Cast Iron Spee-D Channel Botanical
®
252CI 0800 6111 016 Pattern Grate Raw Iron 1 3.18 0052063031392
229 0800 6111 050 Stainless Steel Screws. 8 x 1" Steel 1 0.03 0052063812298
See Class Load Rate Table on page 21.
9.5 x 82.6
104.6
Grate Openings Specification: Cast iron decorative botanical Channel Grate. Open surface area 57.9 square centimeters per 30.5 cm.
CAST IRON
104.1 LPM per 30.5 cm. Class B load rating.

252S 252GR 252GY 252 252CI
