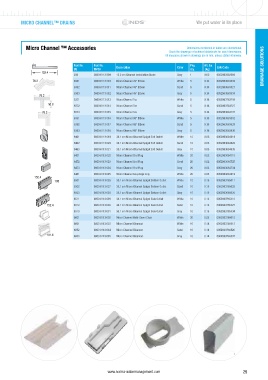

MICRO CHANNEL™ DRAINS We put water in its place

Micro Channel ™ Accessories Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Pkg. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Qty. (kg) EAN Code
152.4
230 0800 6113 009 15.2 cm Channel Installation Stake Gray 1 0.02 0052063302300
76.2 8301 0800 6113 010 Micro Channel 45° Elbow White 5 0.14 0052063683010
8302 0800 6113 011 Micro Channel 45° Elbow Sand 5 0.14 0052063683027
8303 0800 6113 012 Micro Channel 45° Elbow Gray 5 0.14 0052063683034
76.2
8371 0800 6113 013 Micro Channel Tee White 5 0.18 0052063783710
50.8
8372 0800 6113 014 Micro Channel Tee Sand 5 0.18 0052063783727
76.2 8373 0800 6113 015 Micro Channel Tee Gray 5 0.18 0052063683737
8381 0800 6113 016 Micro Channel 90° Elbow White 5 0.18 0052063683812
8382 0800 6113 017 Micro Channel 90° Elbow Sand 5 0.18 0052063683829
8383 0800 6113 018 Micro Channel 90° Elbow Gray 5 0.18 0052063683836
8461 0800 6113 019 38.1 cm Micro Channel Spigot End Outlet White 10 0.05 0052063084619
8462 0800 6113 020 38.1 cm Micro Channel Spigot End Outlet Sand 10 0.05 0052063084626
NDS#8461 AI.eps
8463 0800 6113 021 38.1 cm Micro Channel Spigot End Outlet Gray 10 0.05 0052063684635
8471 0800 6113 022 Micro Channel End Plug White 20 0.02 0052063084718
8472 0800 6113 023 Micro Channel End Plug Sand 20 0.02 0052063084725
8473 0800 6113 024 Micro Channel End Plug Gray 20 0.02 0052063684734
8481 0800 6113 025 Micro Channel Couplings only White 20 0.05 0052063684819
NDS#8481 AI.eps
152.4
108 8501 0800 6113 026 38.1 cm Micro Channel Spigot Bottom Outlet White 10 0.16 0052063785011
8502 0800 6113 027 38.1 cm Micro Channel Spigot Bottom Outlet Sand 10 0.16 0052063785028
NDS#8501 AI.eps 8503 0800 6113 028 38.1 cm Micro Channel Spigot Bottom Outlet Gray 10 0.16 0052063685038
8511 0800 6113 029 38.1 cm Micro Channel Spigot Side Outlet White 10 0.16 0052063785110
152.4 8512 0800 6113 030 38.1 cm Micro Channel Spigot Side Outlet Sand 10 0.16 0052063785127
8513 0800 6113 031 38.1 cm Micro Channel Spigot Side Outlet Gray 10 0.16 0052063785134
NDS#8511 AI.eps
8601 0800 6113 032 Micro Channel Hold-Down Clips White 20 0.05 0052063786018
8651 0800 6113 033 Micro Channel Cleanout White 10 0.14 0052063786513
8652 0800 6113 034 Micro Channel Cleanout Sand 10 0.14 0052063786520
101.6 8653 0800 6113 035 Micro Channel Cleanout Gray 10 0.14 0052063786537
