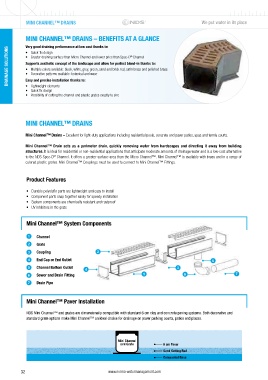

Page 32 - NORMA WM Drainage Catalogue EN

MINI CHANNEL™ DRAINS We put water in its place

MINI CHANNEL™ DRAINS – BENEFITS AT A GLANCE
Very good draining performance at low cost thanks to:
DRAINAGE SOLUTIONS • Quick-fix design ®
• Greater draining surface than Micro Channel and lower price than Spee-D Channel
Supports aesthetic concept of the landscape and allow for perfect blend-in thanks to:
• Multiple colors available: black, white, grey, green, sand and brick red, satin brass and polished brass
• Decorative patterns available: botanical and wave
Easy and precise installation thanks to:
• Lightweight elements
• Quick fix design
• Possibility of cutting the channel and plastic grates exactly to size

MINI CHANNEL™ DRAINS

Mini Channel™ Drains – Excellent for light-duty applications including residential pools, concrete and paver patios, spas and tennis courts.

Mini Channel™ Drain acts as a perimeter drain, quickly removing water from hardscapes and directing it away from building
structures. It is ideal for residential or non-residential applications that anticipate moderate amounts of drainage water and is a low-cost alternative
to the NDS Spee-D Channel. It offers a greater surface area than the Micro Channel™. Mini Channel™ is available with brass and in a range of
®
colored plastic grates. Mini Channel™ Couplings must be used to connect to Mini Channel™ Fittings.

Product Features

• Durable polyolefin parts are lightweight and easy to install
• Component parts snap together easily for speedy installation
• System components are chemically resistant and rustproof
• UV inhibitors in the grate

Mini Channel™ System Components

1 Channel
2 Grate
3 Coupling 2
4 End Cap or End Outlet 5

5 Channel Bottom Outlet 4 3 3
6 Sewer and Drain Fitting 1 6 7
7 Drain Pipe

Mini Channel™ Paver Installation

NDS Mini Channel™ and grates are dimensionally compatible with standard 6 cm clay and concrete paving systems. Both decorative and
standard grate options make Mini Channel™ an ideal choice for drainage on paver parking courts, patios and plazas.

Mini Channel
and Grate 6 cm Paver
Sand Setting Bed
Compacted Base
