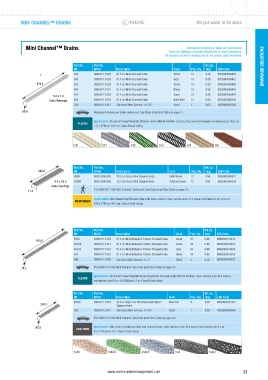

Page 33 - NORMA WM Drainage Catalogue EN

MINI CHANNEL™ DRAINS We put water in its place

Mini Channel™ Drains Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
540 0800 6111 028 91.4 cm Mini Channel Grate White 16 0.30 0052063505404
541 0800 6111 029 91.4 cm Mini Channel Grate Gray 16 0.30 0052063505411
914.4 542 0800 6111 030 91.4 cm Mini Channel Grate Green 16 0.30 0052063505428
543 0800 6111 031 91.4 cm Mini Channel Grate Black 16 0.30 0052063505435
6.4 x 7.9 x 7.9 544 0800 6111 032 91.4 cm Mini Channel Grate Sand 16 0.30 0052063505442
6.4
Gra
Grate Openingste Openings 551 0800 6111 033 91.4 cm Mini Channel Grate Brick Red 16 0.30 0052063505510
529 0800 6113 041 Stainless Steel Screws. 4 x 5/8" Steel 1 0.05 0052063605296
69.9 Requires 4 screws per Grate. Heel-proof. See Class Load Rate Table on page 21.
Specification: Structural Foam Polyolefin Channel Grate with UV inhibitor. Open surface area 63.9 square centimeters per 30.5 cm.
PLASTIC
114.7 LPM per 30.5 cm. Class B load rating.

540 541 542 543 544 551

Part No. Part No. Wt. Ea.
304.8 US EMEA Description Color Pkg. Qty. (kg) EAN Code
552B 0800 6180 095 30.5 cm Brass Mini Channel Grate Satin Brass 12 0.56 0052063505527
6.4 x 22.2 553PB 0800 6180 096 30.5 cm Brass Mini Channel Grate Polished Brass 12 0.56 0052063505534
Grate Openings
71.4 NDS#552B AI.eps Fits 0800 6111 036 Mini Channel. Heel-proof. See Class Load Rate Table on page 21.

Specification: Mini Channel Solid Brass Grate with brass screws. Open surface area 23.4 square centimeters per 30.5 cm.
SOLID BRASS
106.5 LPM per 30.5 cm. Class A load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
554S 0800 6111 045 91.4 cm Mini Botanical Pattern Channel Grate Sand 16 0.40 0052063031316
914.4
554GR 0800 6111 043 91.4 cm Mini Botanical Pattern Channel Grate Green 16 0.40 0052063031323
554GY 0800 6111 044 91.4 cm Mini Botanical Pattern Channel Grate Gray 16 0.40 0052063031309
554 0800 6111 038 91.4 cm Mini Botanical Pattern Channel Grate Black 16 0.40 0052063031293
846 0800 6111 003 Stainless Steel Screws. 4 x 1" Steel 1 0.05 0052063056487

78.2 Fits 0800 6111 036 Mini Channel. See Class Load Rate Table on page 21.
Specification: Structural Foam Polyolefin botanical pattern Channel Grate with UV inhibitor. Open surface area 35.1 square
PLASTIC
centimeters per 0.3 m. 63 LPM per 0.3 m. Class B load rating

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
554CI 0800 6111 042 30.5 cm Cast Iron Mini Botanical Pattern Raw Iron 5 0.82 0052063031415
304.8 Channel Grate
529 0800 6113 041 Stainless Steel Screws. 4 x 5/8" Steel 1 0.05 0052063605296

Fits 0800 6111 036 Mini Channel. See Class Load Rate Table on page 21.
69.9 CAST IRON Specification: Mini Channel botanical Cast Iron Channel Grate. Open surface area 34.8 square centimeters per 0.3 m.
62.4 LPM per 0.3 m. Class B load rating.

554S 554GR 554GY 554 554CI
