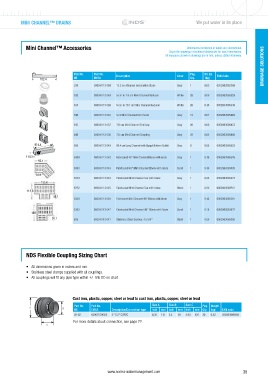

MINI CHANNEL™ DRAINS                                                          We put water in its place





             Mini Channel™ Accessories                                              Dimensions mentioned in tables are orientational.
                                                                            Check the drawings or technical datasheets for exact dimensions.
                                                                          All measures shown in drawings are in mm, unless stated otherwise.



                                  Part No.   Part No.   Description             Color  Pkg.   Wt. Ea.  EAN Code      NORMACLAMP ®  DRAINAGE SOLUTIONS
                   152.4          US       EMEA                                       Qty.   (kg)
                    6"
                                  230      0800 6113 009  15.2 cm Channel Installation Stake  Gray  1  0.02  0052063302300

                                  532      0800 6113 049  5 cm to 7.6 cm Mini Channel Reducer  White  20  0.06  0052063505329

                                  533      0800 6113 050  5 cm to 10.1 cm Mini Channel Reducer  White  20  0.15  0052063505336
                                  546      0800 6113 048  5 cmMini Channel End Outlet  Gray  10  0.07  0052063505466
                    NDS#546 AI.eps
                                  547      0800 6113 037  7.6 cm Mini Channel End Cap  Gray  20  0.05  0052063505473

                   NDS 547        548      0800 6113 036  7.6 cm Mini Channel Coupling  Gray  20  0.05  0052063505480

                914.4 NDS#548 AI.eps  550  0800 6113 040  91.4 cm Long Channel with Spigot Bottom Outlet  Gray  6  0.98  0052063505503

             114.3                5300     0800 6113 042  Fabricated 45° Mini Channel Elbow with Grate  Gray  1  0.18  0052063505305
                  92.1
                  NDS#550 AI.eps
                                  5303     0800 6113 043  Fabricated 45° Mini Channel Elbow with Grate  Sand  1  0.18  0052063503035
                 34.9
                                  5370     0800 6113 044  Fabricated Mini Channel Tee with Grate  Gray  1  0.23  0052063505374
                   155.6
                                  5372     0800 6113 045  Fabricated Mini Channel Tee with Grate  Black  1  0.23  0052063503721
             114.3
                         38.1
                                  5380     0800 6113 046  Fabricated Mini Channel 90° Elbow with Grate  Gray  1  0.18  0052063505381

                                  5383     0800 6113 047  Fabricated Mini Channel 90° Elbow with Grate  Sand  1  0.18  0052063503837
               108
                        38.1      529      0800 6113 041  Stainless Steel Screws. 4 x 5/8"  Steel  1  0.05      0052063605296
                        11/2"







             NDS Flexible Coupling Sizing Chart

             •  All dimensions given in inches and mm.
             •  Stainless steel clamps supplied with all couplings.
             •  All couplings will fit any pipe type within +/- 5% OD on chart.




                                 Cast iron, plastic, copper, steel or lead to cast iron, plastic, copper, steel or lead
                                  Part No.   Part No.                Size A  Size B  Size C  Pkg.  Weight
              A              B
                                  US      EMEA     Description/Connection type  Inch  mm Inch  mm Inch  mm  Qty.  (kg)  EAN code
                                  56-42   08007670024  4" X 2" CI/PVC  4.38  111  2.4  60  4.00  101  30  0.42  052063049366
                                  For more details about connection, see page 22.
                      C
