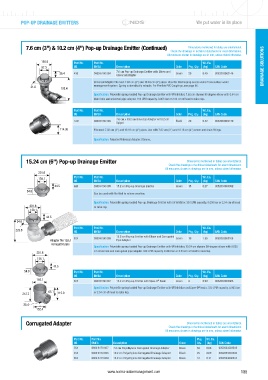

Page 105 - NORMA WM Drainage Catalogue EN

POP-UP DRAINAGE EMITTERS We put water in its place

7.6 cm (3") & 10.2 cm (4") Pop-up Drainage Emitter (Continued) Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
150.8 Part No. Part No. Wt. Ea.
87.3 US EMEA Description Color Pkg. Qty. (kg) EAN Code NORMACLAMP ® DRAINAGE SOLUTIONS
25.4 430 0800 6160 004 7.6 cm Pop-up Drainage Emitter with Elbow and Green 20 0.45 0052063003146
Universal Adapter
Universal Adapter fits most 7.62 cm (3") and 10.16 cm (4") pipes. Ideal for discharging excess water from surface water
31.8 133.4 managementsystem. Spring automatically retracts. For Flexible PVC Couplings, see page 86.
Specification: Polyolefin spring-loaded Pop-up Drainage Emitter with UV inhibitor. 7.62 cm styrene 90 degree elbow with 0.64 cm
drain hole and universal pipe adapter. 151 LPM capacity. 0.003 bar or 2.54 cm of head to raise top.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
NDS_430.eps 7.6 cm x 10.2 cm Universal Adapter w/10.2 cm
#430 is for all three pieces together. 1241 0800 6160 008 Black 20 0.32 0052063003139
Spigot
114.30 Fits most 7.62 cm (3") and 10.16 cm (4") pipes. Use with 7.62 cm (3") and 10.16 cm (4") sewer and drain fittings.
Specification: Patented Universal Adapter. Styrene.
NDS#1241

15.24 cm (6") Pop-up Drainage Emitter Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
201.6
Part No. Part No. Wt. Ea.
138.1
US EMEA Description Color Pkg. Qty. (kg) EAN Code
44.5 620 0800 6160 005 15.2 cm Pop-up Drainage Emitter Green 15 0.27 0052063003092
54.0
Can be used with Flo-Well to relieve overflow.
NDS#420 AI.eps
Specification: Polyolefin spring-loaded Pop-up. Drainage Emitter with UV inhibitor. 333 LPM capacity. 0.003 bar or 2.54 cm of head
201.6 to raise top.
138.1
44.5
54.0
Part No. Part No. Wt. Ea.
223.8 US EMEA Description Color Pkg. Qty. (kg) EAN Code
15.2 cm Pop-up Emitter with Elbow and Corrugated
624 0800 6160 006 Green 10 1.55 0052063003108
Adapter fits 152.4 Pipe Adapter
corrugated pipe.
Specification: Polyolefin spring-loaded Pop-up Drainage Emitter with UV inhibitor, 15.24 cm styrene 90-degree elbow with 0.635
cm drain hole and corrugated pipe adapter. 333 LPM capacity. 0.003 bar or 2.54 cm of head to raise top.
201.6
138.1
44.5
54.0 Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
165.1 625 0800 6160 007 15.2 cm Pop-up Emitter with Spee-D Basin Green 8 0.99 0052063003665
®
NDS#420 AI.eps
Specification: Polyolefin spring-loaded Pop-up Drainage Emitter with UV inhibitor and Spee-D basin. 333 LPM capacity. 0.003 bar
®
65.1 or2.54 cm of head to raise top.
212.7 115.9
25.4
NDS#101 AI.eps
152.4

Corrugated Adapter Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
351 0800 6170 007 7.6 cm Polyethylene Corrugated Drainage Adapter Black 50 0.05 0052063303512
451 0800 6170 008 10.2 cm Polyethylene Corrugated Drainage Adapter Black 25 0.09 0052063404516
651 0800 6170 009 15.2 cm Polyethylene Corrugated Drainage Adapter Black 12 0.11 0052063606514

www.norma-watermanagement.comww.norma-watermanagement.com www.norma-watermanagement.comww.norma-watermanagement.com 105
w
w
NDS_351.EPS
