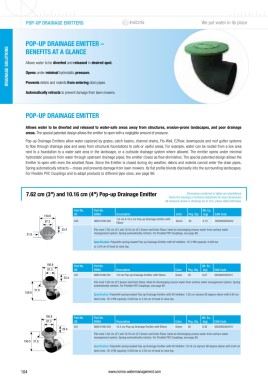

POP-UP DRAINAGE EMITTERS We put water in its place

POP-UP DRAINAGE EMITTER –
DRAINAGE SOLUTIONS Allows water to be diverted and released in desired spot.
BENEFITS AT A GLANCE

Opens under minimal hydrostatic pressure.

Prevents debris and rodents from entering drain pipes.

Automatically retracts to prevent damage from lawn mowers.

POP-UP DRAINAGE EMITTER

Allows water to be diverted and released to water-safe areas away from structures, erosion-prone landscapes, and poor drainage
areas. The special patented design allows the emitter to open with a negligible amount of pressure.
Pop-up Drainage Emitters allow water captured by grates, catch basins, channel drains, Flo-Well, EZflow, downspouts and roof gutter systems
to flow through drainage pipe and away from structural foundations to safe or useful areas. For example, water can be routed from a low area
next to a foundation to a water-safe area in the landscape, or a curbside drainage system where allowed. The emitter opens under minimal
hydrostatic pressure from water through upstream drainage pipes; the emitter closes as flow diminishes. The special patented design allows the
Emitter to open with even the smallest flows. Since the Emitter is closed during dry weather, debris and rodents cannot enter the drain pipes.
Spring automatically retracts – closes and prevents damage from lawn mowers. Its flat profile blends discreetly into the surrounding landscapes.
For Flexible PVC Couplings and to adapt products to different pipe sizes, see page 86.

7.62 cm (3") and 10.16 cm (4") Pop-up Drainage Emitter Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
150.8
87.3 420 0800 6160 002 7.6 cm & 10.2 cm Pop-up Drainage Emitter with Green 20 0.13 0052063404202
Elbow
25.4 Fits most 7.62 cm (3") and 10.16 cm (4") Sewer and Drain Pipes. Ideal for discharging excess water from surface water
31.8 management system. Spring automatically retracts. For Flexible PVC Couplings, see page 86.
Specification: Polyolefin spring-loaded Pop-up Drainage Emitter with UV inhibitor. 151 LPM capacity. 0.003 bar
NDS#420 AI.eps
or 2.54 cm of head to raise top.

150.8 Part No. Part No. Wt. Ea.
87.3 US EMEA Description Color Pkg. Qty. (kg) EAN Code
321 0800 6160 001 7.6 cm Pop-up Drainage Emitter with Elbow Green 25 0.27 0052063303215
25.4
Fits most 7.62 cm (3") Sewer and Drain Pipes. Ideal for discharging excess water from surface water management system. Spring
automatically retracts. For Flexible PVC Couplings, see page 86.
31.8
158.8
Specification: Polyolefin spring-loaded Pop-up Drainage Emitter with UV inhibitor. 7.62 cm styrene 90 degree elbow with 0.64 cm
drain hole. 151 LPM capacity. 0.003 bar or 2.54 cm of head to raise top.
NDS_321.eps
150.8 Part No. Part No. Wt. Ea.
87.3 US EMEA Description Color Pkg. Qty. (kg) EAN Code
421 0800 6160 003 10.2 cm Pop-up Drainage Emitter with Elbow Green 20 0.38 0052063404219
25.4
Fits most 7.62 cm (3") and 10.16 cm (4") Sewer and Drain Pipes. Ideal for discharging excess water from surface water
management system. Spring automatically retracts. For Flexible PVC Couplings, see page 86.
190.5 31.8
Specification: Polyolefin spring-loaded Pop-up Drainage Emitter with UV inhibitor. 10.16 cm styrene 90 degree elbow with 0.64 cm
drain hole. 151 LPM capacity. 0.003 bar or 2.54 cm of head to raise top.

NDS_421.eps
