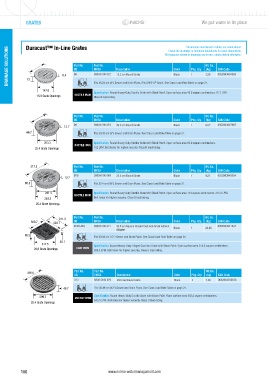

Page 100 - NORMA WM Drainage Catalogue EN

GRATES We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS Duracast™ In-Line Grates Part No. Description All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Part No.
Wt. Ea.
Pkg. Qty.
EMEA
Color
EAN Code
(kg)
US
D6
0052063684826
0800 6180 072
15.2 cm Round Grate
3.29
1
Black
6.4
73
®
NDS#D6 AI.eps Fits 15.24 cm (6") Sewer and Drain Pipes. Fits SPEE-D Basin. See Class Load Rate Table on page 21.
147.6 Specification: Round Heavy-Duty Ductile Grate with Black Paint. Open surface area 45.5 square centimeters. 81.7 LPM.
15.9 Grate Openings DUCTILE IRON Class D load rating.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
12.7 D8 0800 6180 073 20.3 cm Round Grate Black 1 6.57 0052063047867
66.7 Fits 20.32 cm (8") Sewer and Drain Pipes. See Class Load Rate Table on page 21.
NDS#D8 AI.eps
203.2 Specification: Round Heavy-Duty Ductile Grate with Black Paint. Open surface area 90.2 square centimeters.
DUCTILE IRON
25.4 Grate Openings 162 LPM. Bolt holes for higher security. Class D load rating.
317.5 Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
D10 0800 6180 069 25.4 cm Round Grate Black 1 9.27 0052063045054
12.7
60.3 Fits 25.4 cm (10") Sewer and Drain Pipes. See Class Load Rate Table on page 21.
241.3 Specification: Round Heavy-Duty Ductile Grate with Black Paint. Open surface area 173 square centimeters. 310.4 LPM.
NDS#D8 AI.eps
DUCTILE IRON
249.2 Bolt holes for higher security. Class D load rating.
25.4 Grate Openings

Part No. Part No. Wt. Ea.
341.3
320.7 320.7 US EMEA Description Color Pkg. Qty. (kg) EAN Code
D12H-WO 0800 6180 071 30.5 cm Square Hinged Cast Iron Grate without Black 1 21.60 0052063011547
Adapter
90.5 Fits 30.48 cm (12") Sewer and Drain Pipes. See Class Load Rate Table on page 21.
38.1
317.5
NDS_D12H-WO Specification: Square Heavy-Duty Hinged Cast Iron Grate with Black Paint. Open surface area 311.5 square centimeters.
20,6 Grate Openings CAST IRON 559.3 LPM. Bolt holes for higher security. Class D load rating.

Part No. Part No. Wt. Ea.
336.6
US EMEA Description Color Pkg. Qty. (kg) EAN Code
D12 0800 6180 070 30.5 cm Round Grate Black 1 7.20 0052063045528
46.7 Fits 30.48 cm (12") Sewer and Drain Pipes. See Class Load Rate Table on page 21.

299.7 DUCTILE IRON Specification: Round Heavy-Duty Ductile Grate with Black Paint. Open surface area 355.8 square centimeters.
25.4 Grate Openings 643.5 LPM. Bolt holes for higher security. Class D load rating.
