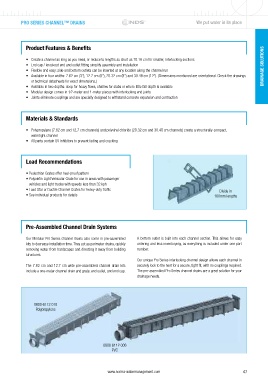

Page 47 - NORMA WM Drainage Catalogue EN
P. 47

PRO SERIES CHANNEL™ DRAINS                                                    We put water in its place





             Product Features & Benefits


             •  Create a channel as long as you need, or reduce to lengths as short as 10.16 cm for smaller, interlocking sections
             •   End cap / knockout end and outlet fitting simplify assembly and installation                         NORMACLAMP ®  DRAINAGE SOLUTIONS
             •   Flexible and easy: side and bottom outlets can be inserted at any location along the channel run
             •   Available in four widths: 7.62 cm (3"), 12.7 cm (5"), 20.32 cm (8") and 30.48 cm (12"). (Dimensions mentioned are orientational. Check the drawings
               or technical datasheets for exact dimensions.)
             •   Available in two depths: deep for heavy flows, shallow for slabs or where little fall depth is available
             •   Modular design comes in 1⁄2-meter and 1-meter pieces with interlocking end joints
             •   Joints eliminate couplings and are specially designed to withstand concrete expansion and contraction




             Materials & Standards

             •  Polypropylene (7.62 cm and 12.7 cm channels) and polyvinyl chloride (20.32 cm and 30.48 cm channels) create a structurally-compact,
               watertight channel
             •   All parts contain UV inhibitors to prevent fading and cracking




             Load Recommendations

             • Pedestrian Grates offer heel-proof pattern
             •  Polyolefin Light Vehicular Grate for use in areas with passenger
              vehicles and light trucks with speeds less than 32 kph
             • Load Star or Ductile Channel Grates for heavy-duty traffic                           Divide in
             • See individual products for details                                              100mm lengths







             Pre-Assembled Channel Drain Systems

             Our Modular Pro Series channel drains also come in pre-assembled   A bottom outlet is built into each channel section. This allows for easy
             kits to decrease installation time. They act as perimeter drains, quickly   ordering and less inventorying, as everything is included under one part
             removing water from hardscapes and directing it away from building   number.
             structures.
                                                              Our unique Pro Series interlocking channel design allows each channel to
             The 7.62 cm and 12.7 cm wide pre-assembled channel drain kits   securely lock to the next for a secure, tight fit, with no couplings required.
             include a one-meter channel drain and grate, end outlet, and end cap.   The pre-assembled Pro Series channel drains are a great solution for your
                                                              drainage needs.






                0800 6112 018
                0800 6112 018
                 Polypropylene
                 Polypropylene






                                               0800 6112 006
                                               0800 6112 006
                                                   PVC
                                                   PVC
