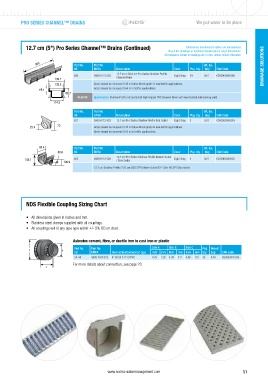

PRO SERIES CHANNEL™ DRAINS                                                    We put water in its place





             12.7 cm (5") Pro Series Channel™ Drains (Continued)                    Dimensions mentioned in tables are orientational.
                                                                            Check the drawings or technical datasheets for exact dimensions.
                                                                          All measures shown in drawings are in mm, unless stated otherwise.
                 500              Part No.   Part No.                                       Wt. Ea.                  NORMACLAMP ®
                                  US       EMEA      Description              Color  Pkg. Qty.   (kg)  EAN Code       DRAINAGE SOLUTIONS
                   5" Modular Pro Series Channel
                       (Shallow Profile)  820  0800 6112 025  12.7 cm x 50.8 cm Pro Series Shallow Profile   Light Gray  10  0.61  0052063808208
                         139.7                       Channel Drain
                           5 1 /2"
                         5  1/2"
                         133.3
                           5 1 /4"
                         5  1/4"           Grate should be recessed 0.32 m below finish grade in non-traffic applications.
                  19.1                     Grate should be recessed 0.64 m in traffic applications.
                   3
                      /4"
                   3/4"
                              66.7
                               2 5 /8" 2  5/8"
                                    PLASTIC  Specification: Shallow Profile UV-protected high-impact PVC Channel Drain with mechanical interlocking joint.
                         114.3
                         4  1/2"
                                  Part No.   Part No.                                       Wt. Ea.
                                  US       EMEA      Description              Color  Pkg. Qty.   (kg)  EAN Code
                                  821      0800 6112 023  12.7 cm Pro Series Shallow Profile End Outlet  Light Gray  1  0.07  0052063808215
                           73
              25.4                         Grate should be recessed 0.32 m below finish grade in non-traffic applications.
                                           Grate should be recessed 0.64 m in traffic applications.
                    NDS#821 AI.eps
                  98.4            Part No.   Part No.                                       Wt. Ea.
                           88.9   US       EMEA      Description              Color  Pkg. Qty.   (kg)  EAN Code
                                                     12.7 cm Pro Series Shallow Profile Bottom Outlet
            146.1                 822      0800 6112 026  / Side Outlet       Light Gray  1  0.27  0052063808222
                             120.6
                                           12.7 cm Shallow Profile 7.62 cm S&D SPT Bottom Outlet/1½" Sch. 40 SPT Side Outlet





             NDS Flexible Coupling Sizing Chart


             •  All dimensions given in inches and mm.
             •  Stainless steel clamps supplied with all couplings.
             •  All couplings will fit any pipe type within +/- 5% OD on chart.


                                 Asbestos cement, fibre, or ductile iron to cast iron or plastic
                                  Part No.   Part No.                Size A  Size B  Size C  Pkg.  Weight
              A              B
                                  US      EMEA     Description/Connection type  Inch  mm Inch  mm Inch  mm  Qty.  (kg)  EAN code
                                  51-44   0800 7670 013  4" AC/DI X 4" CI/PVC  4.75  120  4.38  111  4.00  101  24  0.49  052063010106
                                 For more details about connection, see page 23.
                     C
