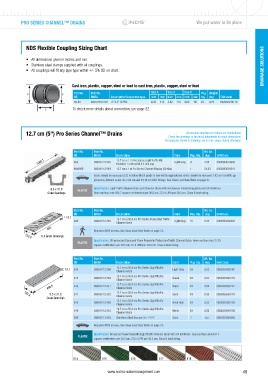

Page 49 - NORMA WM Drainage Catalogue EN

PRO SERIES CHANNEL™ DRAINS We put water in its place

NDS Flexible Coupling Sizing Chart

• All dimensions given in inches and mm.
• Stainless steel clamps supplied with all couplings. NORMACLAMP ® DRAINAGE SOLUTIONS
• All couplings will fit any pipe type within +/- 5% OD on chart.

Cast iron, plastic, copper, steel or lead to cast iron, plastic, copper, steel or lead

A B Part No. Part No. Size A Size B Size C Pkg. Weight
US EMEA Description/Connection type Inch mm Inch mm Inch mm Qty. (kg) EAN code
56-44 0800 7670 026 4" X 4" CI/PVC 4.42 112 4.42 112 4.00 101 24 0.75 052063010113
C To check more details about connection, see page 22.

12.7 cm (5") Pro Series Channel™ Drains Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1000.1 864 0800 6112 018 12.7 cm x 1 m Pro Series Light Traffic Kit. Light Gray 9 2.55 0052063018645
Includes 1 end outlet & 1 end cap
864DISP 0800 6112 019 12.7 cm x 1 m Pro Series Channel Display (20 Kits) 1 51.03 0052063030319
Grate should be recessed 0.32 m below finish grade in non-traffic applications. Grate should be recessed 7.62 cm in traffic ap-
plications. Bottom outlet fits 7.62 cm and 10.16 cm S&D fittings. See Class Load Rate Table on page 21.

9.5 x 31.8 PLASTIC Specification: Light Traffic Channel Grate and Channel Drain with mechanical interlocking joints and UV inhibitors.
Grate Openings Open surface area 151.7 square centimeters per 30.5 cm. 272.4 LPM per 30.5 cm. Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
19.1 12.7 cm x 50.8 cm Pro Series Pedestrian Traffic
826 0800 6112 015 Light Gray 10 0.45 0052063808260
Channel Grate
500 Requires #829 screws. See Class Load Rate Table on page 21.
150.8 6.4 Grate Openings
Specification: UV-protected Structural Foam Polyolefin Pedestrian Traffic Channel Grate. Open surface area 31.35
PLASTIC
square centimeters per 30.5 cm. 91.8 LPM per 30.5 cm. Class A load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
12.7 cm x 50.8 cm Pro Series Light Traffic
19.1 814 0800 6112 009 Light Gray 10 0.52 0052063808147
Channel Grate
12.7 cm x 50.8 cm Pro Series Light Traffic
815 0800 6112 010 Green 10 0.52 0052063808154
Channel Grate
498.5 816 0800 6112 011 12.7 cm x 50.8 cm Pro Series Light Traffic Black 10 0.52 0052063808161
Channel Grate
12.7 cm x 50.8 cm Pro Series Light Traffic
NDS#814 AI.eps
9.5 x 31.8 817 0800 6112 012 Channel Grate Sand 10 0.52 0052063808178
133.4
Grate Openings
818 0800 6112 008 12.7 cm x 50.8 cm Pro Series Light Traffic Brick Red 10 0.52 0052063808185
Channel Grate
12.7 cm x 50.8 cm Pro Series Light Traffic
819 0800 6112 013 White 10 0.52 0052063808192
Channel Grate
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
Requires #829 screws. See Class Load Rate Table on page 21.
Specification: Structural Foam Polyolefin Light Traffic Channel Grate with UV inhibitors. Open surface area 151.7
PLASTIC
square centimeters per 30.5 cm. 272.4 LPM per 30.5 cm. Class B load rating.

814 815 816 817 818 819
