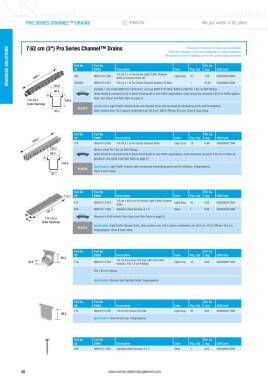

Page 48 - NORMA WM Drainage Catalogue EN

PRO SERIES CHANNEL™ DRAINS We put water in its place

DRAINAGE SOLUTIONS 7.62 cm (3") Pro Series Channel™ Drains All measures shown in drawings are in mm, unless stated otherwise.
Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.

Wt. Ea.
Part No.
Part No.
US
Color
(kg)
EMEA
EAN Code
Pkg. Qty.
Description
7.6 cm x 1 m Pro Series Light Traffic Channel
1000.1
1000.1
0800 6112 006
1.58
0052063076409
10
764
Light Gray
Grate & Channel Drain Kit
764DISP
47.25
7.6 cm x 1 m Pro Series Channel Display (16 Kits)
0800 6112 007
1
103.2
4 1
4 1 /16"/16"
Includes 1 end outlet (0800 6112 003) and 1 end cap (0800 6112 002). Bottom outlet fits 7.62 cm S&D fittings. 0052063013558
98.4
3 7 /8"
Grate should be recessed 0.32 m below finish grade in non-traffic applications. Grate should be recessed 0.64 m in traffic applica-
15.9
5 /8"
tions. See Class Load Rate Table on page 21.
7.9 x 22.2 104.8
4 1 /8"
Grate Openings Specification: Light Traffic Channel Grate and Channel Drain with mechanical interlocking joints and UV inhibitors.
PLASTIC
83.1 Open surface area 152.4 square centimeters per 30.5 cm. 290.9 LPM per 30.5 cm. Class B load rating.
3 5 /16"
Part No. Part No. Wt. Ea.
1000.1 US EMEA Description Color Pkg. Qty. (kg) EAN Code
12
0052063071008
0800 6112 005
7.6 cm x 1 m Pro Series Channel Drain
0.86
710
Light Gray
103.2 Bottom outlet fits 7.62 cm S&D fittings.
4 1 /16"
98.4 Grate should be recessed 0.32 m below finish grade in non-traffic applications. Grate should be recessed 7.62 cm in traffic ap-
3 7 /8"
15.9 5 /8" plications. See Class Load Rate Table on page 21.
104.8
4 1 /8"
Specification: Light Traffic Channel with mechanical interlocking joints and UV inhibitors. Polypropylene.
PLASTIC Class B load rating.
83.1
3 5 /16"
Part No. Part No. Wt. Ea.
12.7 US EMEA Description Color Pkg. Qty. (kg) EAN Code
7.6 cm x 50.8 cm Pro Series Light Traffic Channel
714 0800 6112 004 Light Gray 16 0.32 0052063071404
Grate
501.2 229 0800 6111 050 Stainless Steel Screws. 8 x 1" Steel 1 0.03 0052063812298
7.9 x 22.2 Requires 4 #229 screws. See Class Load Rate Table on page 21.
98.4
Grate Openings
Specification: Light Traffic Channel Grate. Open surface area 152.4 square centimeters per 30.5 cm. 273.6 LPM per 30.5 cm.
PLASTIC
Polypropylene. Class B load rating.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
98.4
34.9 713 0800 6112 003 7.6 cm Pro Series End Cap with End Outlet Light Gray 12 0.05 0052063071305
function. Fits 7.6 cm Fittings
Fits 7.62 cm Fittings.
Specification: Channel End Cap/End Outlet. Polypropylene.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
712 0800 6112 002 7.6 cm Pro Series End Cap Light Gray 20 0.02 0052063071206
98.4
Specification: Channel End Cap. Polypropylene.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
229 0800 6111 050 Stainless Steel Screws. 8 x 1" Steel 1 0.03 0052063812298
