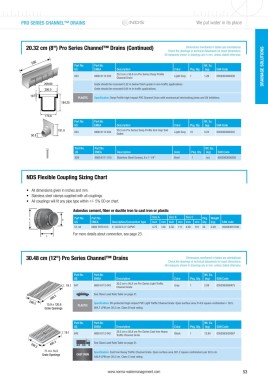

PRO SERIES CHANNEL™ DRAINS We put water in its place

20.32 cm (8") Pro Series Channel™ Drains (Continued) Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
500
Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
20.3 cm x 50.8 cm Pro Series Deep Profile
833 0800 6112 033 Light Gray 1 1.26 0052063808338
Channel Drain
209.60 Grate should be recessed 0.32 m below finish grade in non-traffic applications.
8 1 /4"
200.0 Grate should be recessed 0.64 m in traffic applications.
7 7 /8"
19.10 PLASTIC Specification: Deep Profile high-impact PVC Channel Drain with mechanical interlocking joints and UV inhibitors.
3 /4"
184.20
7 1 /4"
174.6
6 7 /8"
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
181.0 834 0800 6112 034 20.3 cm Pro Series Deep Profile End Cap/ End Light Gray 10 0.23 0052063808345
50.8 Outlet

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295

NDS Flexible Coupling Sizing Chart

• All dimensions given in inches and mm.
• Stainless steel clamps supplied with all couplings.
• All couplings will fit any pipe type within +/- 5% OD on chart.

Asbestos cement, fiber or ductile iron to cast iron or plastic
A B Part No. Part No. Size A Size B Size C Pkg. Weight
US EMEA Description/Connection type Inch mm Inch mm Inch mm Qty. (kg) EAN code
51-44 0800 7670 013 4" AC/DI X 4" CI/PVC 4.75 120 4.38 111 4.00 101 24 0.49 052063010106
For more details about connection, see page 23.
C

30.48 cm (12") Pro Series Channel™ Drains Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
30.5 cm x 50.8 cm Pro Series Light Traffic
19.1 847 0800 6112 043 Channel Grate Gray 1 2.09 0052063808475
498.5 See Class Load Rate Table on page 21.

298.5 Specification: UV-protected high-impact PVC Light Traffic Channel Grate. Open surface area 314.6 square centimeters / 30.5.
15.9 x 120.6 PLASTIC
Grate Openings 564.7 LPM per 30.5 cm. Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
19.1 845 0800 6112 042 30.5 cm x 50.8 cm Pro Series Cast Iron Heavy Black 1 12.60 0052063039367
Traffic Channel Grate
495.3 See Class Load Rate Table on page 21.
298.5
NDS#845
71.4 x 14.3 Specification: Cast Iron Heavy Traffic Channel Grate. Open surface area 301.2 square centimeters per 30.5 cm.
Grate Openings CAST IRON
540.9 LPM per 30.5 cm. Class C load rating.
