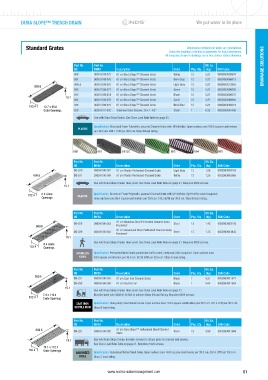

DURA SLOPE™ TRENCH DRAIN We put water in its place

Standard Grates Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
660 0800 6180 075 61 cm Dura Slope™ Channel Grate White 12 1.27 0052063626604
661 0800 6180 076 61 cm Dura Slope™ Channel Grate Dark Gray 12 1.27 0052063606613
661LG 0800 6180 081 61 cm Dura Slope™ Channel Grate Light Gray 12 1.27 0052063012865
609.6
662 0800 6180 077 61 cm Dura Slope™ Channel Grate Green 12 1.27 0052063606620
663 0800 6180 074 61 cm Dura Slope™ Channel Grate Black 12 1.27 0052063606637
19.1
664 0800 6180 078 61 cm Dura Slope™ Channel Grate Sand 12 1.27 0052063606644
152.4 12.7 x 96.8 665 0800 6180 079 61 cm Dura Slope™ Channel Grate Brick Red 12 1.27 0052063606651
Grate Openings 629 0800 6111 002 Stainless Steel Screws. 20 x 1-1/2" Steel 1 0.32 0052063041438
Use with Dura Slope Drains. See Class Load Rate Table on page 21.
Specification: Structural Foam Polyolefin, secured Channel Grate with UV inhibitor. Open surface area 163.8 square centimeters
PLASTIC
per 30.5 cm. 294.1 LPM per 30.5 cm. Class B load rating.

660 661 661LG 662 663 664 665

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
DS-670 0800 6180 087 61 cm Plastic Perforated Channel Grate Light Gray 12 1.26 0052063003153
609.6 DS-671 0800 6180 088 61 cm Plastic Perforated Channel Grate White 12 1.26 0052063018805
Use with Dura Slope Drains. Heel-proof. See Class Load Rate Table on page 21. Requires #629 screws.
19.1

152.4 6.4 Grate PLASTIC Specification: Structural Foam Polyolefin, secured Channel Grate with UV inhibitor, light traffic rated, heelproof,
Openings Open surface area 56.4 square centimeters per 30.5 cm. 101.3 LPM per 30.5 cm. Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
61 cm Stainless Steel Perforated Channel Grate,
DS-226 0800 6180 083 Steel 12 1.42 0052063003115
609.6 Heelproof
61 cm Galvanized Steel Perforated Channel Grate,
DS-228 0800 6180 084 Steel 12 1.72 0052063013435
Heelproof
19.1
Use with Dura Slope Drains. Heel-proof. See Class Load Rate Table on page 21. Requires #629 screws.
6.4 Grate
152.4 Openings
STAINLESS Specification: Perforated Metal Grate, pedestrian traffic rated, heelproof, ADA compliant. Open surface area
STEEL 49.2 square centimeters per 30.5 cm. 88.35 LPM per 30.5 cm. Class A load rating.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
609.6
DS-231 0800 6180 085 61 cm Cast Iron Channel Grate Black 1 8.51 0052063011677
DS-232 0800 6180 086 61 cm Ductile Iron Black 1 6.84 0052063011684
19.1
Use with Dura Slope Drains. Heel-proof. See Class Load Rate Table on page 21.
7.9 x 119.1 Must be used with 0800 6113 005 to achieve Class D Load Rating. Requires #629 screws.
152.4 Grate Openings
CAST IRON Specification: Heavy-duty Iron Channel Grate. Open surface area 134.5 square centimeters per 30.5 cm. 241.4 LPM per 30.5 cm.
DUCTILE IRON Class D load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
609.6 DS-221 0800 6180 082 61 cm Dura Slope™ Galvanized Steel Channel Steel 12 2.99 0052063011660
Grate
19.1 Use with Dura Slope Drains. Includes bracket to attach grate to channel and screws.
See Class Load Rate Table on page 21. Requires # 629 screws.
19.1 x 112.7
152.4 NDS#667 AI.eps Grate Openings
GALVINIZED Specification: Galvanized Rolled Steel Grate. Open surface area 148.9 square centimeters per 30.5 cm. 267.4 LPM per 30.5 cm.
STEEL Class C load rating.
