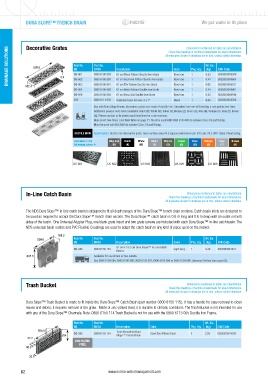

Page 62 - NORMA WM Drainage Catalogue EN

DURA SLOPE™ TRENCH DRAIN We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS Decorative Grates Part No. Part No. Description All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Wt. Ea.
609.6
EMEA
(kg)
Pkg. Qty.
US
EAN Code
Color
0052063019840
DS-601
0800 6180 089
Raw Iron
6.53
61 cm Wave Pattern Ductile Iron Grate
1
6.4
DS-602
DS-603
0052063019871
0800 6180 091
6.62
61 cm Tile Pattern Ductile Iron Grate
Raw Iron
152.4
61 cm Brick Pattern Ductile Iron Grate
0052063019901
6.44
Raw Iron
DS-604 0800 6180 090 61 cm Diamond Pattern Ductile Iron Grate Raw Iron 1 1 1 6.44 0052063019864
0800 6180 092
DS-609 0800 6180 093 61 cm Deco Slot Ductile Iron Grate Raw Iron 1 6.53 0052063019918
229 0800 6111 050 Stainless Steel Screws. 8 x 1" Steel 1 0.03 0052063812298
Use with Dura Slope Drains, decorative grates are made of ductile iron. Uncoated raw iron will develop a rust patina over time.
Additional powder-coat colors available: Black (K), White (W), Silver (S), Bronze (Z), Green (G), Blue (B), Orange (O), Gray (Y), Brown
(N). Please contact us to check exact lead time for color versions.
Heel-proof. See Class Load Rate Table on page 21. Must be used with 0800 6113 005 to achieve Class D Load Rating.
Must be used with DS-200H to acheive Class D Load Rating.
DUCTILE IRON Specification: Ductile iron decorative grate. Open surface area 43.5 square centimeters per 30.5 cm. 78.2 LPM. Class D load rating.
Available in the Raw Iron Black White Silver Bronze Green Blue Orange Gray Brown
following colors  (K) (K) (W) (S) (S) (G) (B) (O) (Y) (N)
DS-601 DS-602 DS-603 DS-604 DS-609
In-Line Catch Basin Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
The NDS Dura Slope™ in-line catch basin is designed to fit all depth ranges of the Dura Slope™ trench drain sections. Catch basin inlets are designed to
be sized as required to accept the Dura Slope™ trench drain section. The Dura Slope™ catch basin is 0.6 m long and 0.6 m deep with an outlet on both
sides of the basin. One Universal Adapter Plug, one blank grate insert and two grate screws are included with each Dura Slope™ in-line catch basin. The
NDS universal basin outlets and PVC Flexible Couplings are used to adapt the catch basin to any kind of pipes used on the market.
168.3
609.6 Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
61 cm x 15.2 cm Dura Slope™ In-Line Catch
DS-340 0800 6150 115 Light Gray 1 5.40 0052063010847
Basins
685.8 Available for use of one or two outlets.
Use 0800 6150 094, 0800 6150 096, 0800 6150 097, 0800 6150 098 or 0800 6150 099. Universal Outlets (see page 82).

Trash Bucket Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Dura Slope™ Trash Bucket is made to fit inside the Dura Slope™ Catch Basin (part number 0800 6150 115). It has a handle for easy removal to clean
leaves and debris; it requires removal of the grate. Made of zinc-plated steel, it is durable to climatic conditions. The Trash Bucket is not intended for use
with any of the Dura Slope™ Channels. Note: 0800 6150 114 Trash Bucket is not for use with the 0800 6113 005 Ductile Iron Frame.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
558.8 Trash Bucket for Dura
254 DS-240 0800 6150 114 Slope™ Trench Drain Steel Zinc-Plated Steel 1 2.25 0052063014630
57.2
ZINC PLATED
STEEL
95.3
50.8
NDS DS-240
