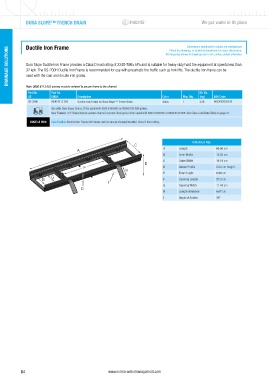

DURA SLOPE™ TRENCH DRAIN We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS Ductile Iron Frame All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Dura Slope Ductile Iron Frame provides a Class D load rating of 2248-3965 kPa and is suitable for heavy-duty hard tire equipment at speeds less than
32 kph. The DS-200H Ductile Iron Frame is recommended for use with pneumatic tire traffic such as fork lifts. The ductile iron frame can be
used with the cast and ductile iron grates.

Note: 0800 6113 003 screws must be ordered to secure frame to the channel.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
DS-200H 0800 6113 005 Ductile Iron Frame for Dura Slope™ Trench Drain Black 1 3.38 0052063058016
Use with Dura Slope Drains. To be used with 0800 6180 085 or 0800 6180 086 grates.
New Feature: 1/4" Brass Nuts to secure channel inserted. Heel-proof when used with 0800 6180 085 or 0800 6180 086. See Class Load Rate Table on page 21.
DUCTILE IRON Specification: Ductile Iron Frame with brass nuts to secure channel inserted. Class D load rating.

Dimension Key
C
A A Length 60.96 cm
B Inner Width 15.24 cm
C Outer Width 16.19 cm
E
F D Added Profile 2.54 cm Height
H
E Total Height 6.99 cm
G
B F Opening Length 27.3 cm
I
G Opening Width 11.43 cm
D
H Length of Anchor 6.67 cm
I Angle of Anchor 30°
