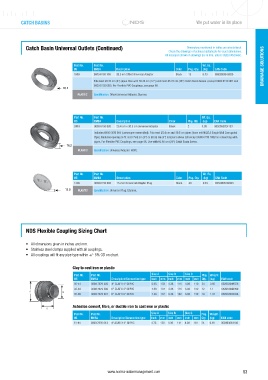

Page 83 - NORMA WM Drainage Catalogue EN

CATCH BASINS We put water in its place

Catch Basin Universal Outlets (Continued) Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
NDS#1889 AI.eps
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1889 0800 6150 100 20.3 cm Offset Universal Adapter Black 10 0.33 0052063043920
Fits most 20.32 cm (8") pipes. Use with 30.48 cm (12") and most 45.72 cm (18") Catch Basin Series. (except 0800 6150 067 and
0800 6150 068). For Flexible PVC Couplings, see page 86.
76.2
PLASTIC Specification: Offset Universal Adapter. Styrene.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
2410 0800 6150 088 25.4 cm x 30.5 cm Universal Adapter Black 2 1.89 0052063024103
Includes 0800 6150 084 (comes pre-assembled). Fits most 25.4 cm and 30.5 cm pipes (does not fit 25.4 Single Wall Corrugated
Pipe). Reduces opening to fit most 7.62 cm (3") to 20.32 cm (8") adapters above (all except 0800 6150 100) for connecting with
pipes. For Flexible PVC Couplings, see page 86. Use with 60.96 cm (24") Catch Basin Series.
76.2
PLASTIC Specification: Universal Adapter. HDPE.
NDS#2408

Part No. Part No. Wt. Ea.
NDS#1206 AI.eps
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1206 0800 6150 094 15.2 cm Universal Adapter Plug Black 20 0.16 0052063012063
15.9 PLASTIC Specification: Universal Plug. Styrene.

NDS Flexible Coupling Sizing Chart

• All dimensions given in inches and mm.
• Stainless steel clamps supplied with all couplings.
• All couplings will fit any pipe type within +/- 5% OD on chart.

Clay to cast iron or plastic
Part No. Part No. Size A Size B Size C Pkg. Weight
US EMEA Description/Connection type Inch mm Inch mm Inch mm Qty. (kg) EAN code
02-44 0800 7670 005 4" CLAY X 4" CI/PVC 5.25 133 4.38 111 4.00 110 24 0.65 052063048376
02-64 0800 7670 006 6" CLAY X 4" CI/PVC 7.38 187 4.38 111 6.00 152 12 1.1 052063048390
A B
02-66 0800 7670 007 6" CLAY X 6" CI/PVC 7.38 187 6.38 162 6.00 152 18 1.07 052063010038
Asbestos cement, fibre, or ductile iron to cast iron or plastic
C
Part No. Part No. Size A Size B Size C Pkg. Weight
US EMEA Description/Connection type Inch mm Inch mm Inch mm Qty. (kg) EAN code
51-44 0800 7670 013 4" AC/DI X 4" CI/PVC 4.75 120 4.38 111 4.00 101 24 0.49 052063010106
