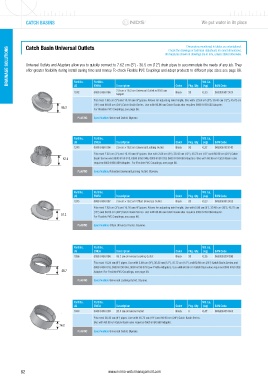

Page 82 - NORMA WM Drainage Catalogue EN

CATCH BASINS We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS Catch Basin Universal Outlets All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Universal Outlets and Adapters allow you to quickly connect to 7.62 cm (3") - 30.5 cm (12") drain pipes to accommodate the needs of any job. They
offer greater flexibility during install saving time and money. To check Flexible PVC Couplings and adopt products to different pipe sizes see page 86.

Part No.
Part No.
US
(kg)
EMEA
Description
7.6 cm x 10.2 cm Universal Outlet w/10.2 cm Color Pkg. Qty. Wt. Ea. EAN Code
1242 0800 6150 095 Black 20 0.33 0052063012421
Spigot
Fits most 7.62 cm (3") and 10.16 cm (4") pipes. Allows for adjusting inlet height. Use with 22.86 cm (9"), 30.48 cm (12"), 45.72 cm
(18") and 60.96 cm (24") Catch Basin Series. Use with 60.96 cm Catch Basin also requires 0800 6150 088 Adapter.
95.3
For Flexible PVC Couplings, see page 86.
NDS#1242 AI.eps PLASTIC Specification: Universal Outlet. Styrene.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1243 0800 6150 096 7.6 cm x 10.2 cm Universal Locking Outlet Black 20 0.27 0052063121147
NDS#1243 AI.eps
Fits most 7.62 cm (3") and 10.16 cm (4") pipes. Use with 2.86 cm (9"), 30.48 cm (12"), 45.72 cm (18") and 60.96 cm (24") Catch
57.2 Basin Series and 0800 6150 010, 0800 6150 046, 0800 6150 079, 0800 6150 088 Adapters. Use with 60.96 cm Catch Basin also
requires 0800 6150 088 Adapter. For Flexible PVC Couplings, see page 86.
PLASTIC Specification: Patented Universal Locking Outlet. Styrene.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1245 0800 6150 097 7.6 cm x 10.2 cm Offset Universal Outlet Black 20 0.23 0052063012452
NDS#1245 AI.eps Fits most 7.62 cm (3") and 10.16 cm (4") pipes. Allows for adjusting inlet height. Use with 2.86 cm (9"), 30.48 cm (12"), 45.72 cm

57.2 (18") and 60.96 cm (24") Catch Basin Series. Use with 60.96 cm Catch Basin also requires 0800 6150 088 Adapter.
For Flexible PVC Couplings, see page 86.
PLASTIC Specification: Offset Universal Outlet. Styrene.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1266 0800 6150 098 15.2 cm Universal Locking Outlet Black 20 0.25 0052063201290
NDS#1266 AI.eps
Fits most 15.24 cm (6") pipes. Use with 2.86 cm (9"), 30.48 cm (12"), 45.72 cm (18") and 60.96 cm (24") Catch Basin Series and
0800 6150 010, 0800 6150 046, 0800 6150 079 Low-Profile Adapters. Use with 60.96 cm Catch Basin also requires 0800 6150 088
58.7 Adapter. For Flexible PVC Couplings, see page 86.
PLASTIC Specification: Universal Locking Outlet. Styrene.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
0.47
8
Black
20.3 cm Universal Outlet
0800 6150 099
1888
0052063018881
NDS#1888 AI.eps Fits most 20.32 cm (8") pipes. Use with 45.72 cm (18") and 60.96 cm (24") Catch Basin Series.
76.2 Use with 60.96 cm Catch Basin also requires 0800 6150 088 Adapter.
PLASTIC Specification: Universal Outlet. Styrene.
