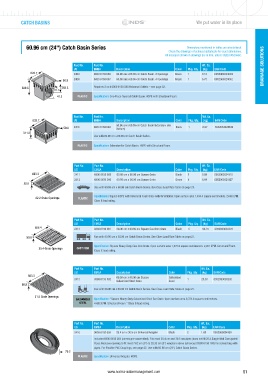

60.96 cm (24") Catch Basin Series Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
628.7 2400 0800 6150 086 60.96 cm x 60.96 cm Catch Basin. 2 Openings Black 1 8.10 0052063024004
50.8 2404 0800 6150 087 60.96 cm x 60.96 cm Catch Basin. 4 Openings Black 1 6.75 0052063024042
609.6 368.3 Requires 2 or 4 0800 6150 088 Universal Outlets – see page 82.
111.1
41.3 PLASTIC Specification: One-Piece Tapered Catch Basin. HDPE with Structural Foam.

NDS#2400

Part No. Part No. Wt. Ea.
628.7 US EMEA Description Color Pkg. Qty. (kg) EAN Code
60.96 cm x 60.96 cm Catch Basin Extension (No
50.8 2418 0800 6150 093 Bottom) Black 1 6.57 0052063024189
311.2
Use with 60.96 cm x 60.96 cm Catch Basin Series.

PLASTIC Specification: Extension for Catch Basin. HDPE with Structural Foam.
NDS#2418

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
603.3 2411 0800 6150 089 60.96 cm x 60.96 cm Square Grate Black 1 8.89 0052063024110
2412 0800 6150 090 60.96 cm x 60.96 cm Square Grate Green 1 8.89 0052063024127
50.8
Use with 60.96 cm x 60.96 cm Catch Basin Series. See Class Load Rate Table on page 21.

22.2 Grate Openings PLASTIC Specification: Square HDPE with Structural Foam Grate with UV inhibitor. Open surface area 1,494.4 square centimeters. 2 680 LPM.
NDS#2412.AI.eps
Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
606.4 2413 0800 6150 091 60.96 cm x 60.96 cm Square Cast Iron Grate Black 1 66.15 0052063038278

50.8 Use with 60.96 cm x 60.96 cm Catch Basin Series. See Class Load Rate Table on page 21.

Specification: Square Heavy-Duty Cast Iron Grate. Open surface area 1,270.6 square centimeters. 2,281 LPM. Structural Foam.
25.4 Grate Openings CAST IRON
Class C load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
603.3 60.96 cm x 60.96 cm Square Galvanized
2415 0800 6150 092 1 28.30 0052063038285
Galvanized Steel Grate Steel
50.8
Use with 60.96 cm x 60.96 cm Catch Basin Series. See Class Load Rate Table on page 21.
31.8 Grate Openings
NDS#1215 AI.eps
GALVANIZED Specification: "Square Heavy-Duty Galvanized Steel Bar Grate. Open surface area 2,724.8 square centimeters.
STEEL 4 892 LPM. Structural Foam." Class D load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
2410 0800 6150 088 25.4 cm x 30.5 cm Universal Adapter Black 2 1.89 0052063024103
Includes 0800 6150 084 (comes pre-assembled). Fits most 25.4 cm and 30.5 cm pipes (does not fit 25.4 Single Wall Corrugated
Pipe). Reduces opening to fit most 7.62 cm (3") to 20.32 cm (8") adapters above (all except 0800 6150 100) for connecting with
pipes. For Flexible PVC Couplings, see page 82. Use with 60.96 cm (24") Catch Basin Series.
76.2
PLASTIC Specification: Universal Adapter. HDPE.
NDS#2408
