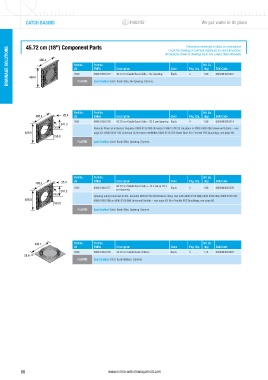

Page 80 - NORMA WM Drainage Catalogue EN

CATCH BASINS We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS 45.72 cm (18") Component Parts Description All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.
460.4
Wt. Ea.
Part No.
Part No.
EMEA
EAN Code
Color
(kg)
Pkg. Qty.
US
1820
0800 6150 075
45.72 cm Catch Basin Side – No Opening
0052063018201
1.80
4
Black
489.0
NDS#1820 AI.eps PLASTIC Specification: Catch Basin Side, No Opening. Styrene.
Part No. Part No. Wt. Ea.
460.4 25.4 US EMEA Description Color Pkg. Qty. (kg) EAN Code
1821 0800 6150 076 45.72 cm Catch Basin Side – 20.3 cm Opening Black 4 1.80 0052063018218
241.3
158.8 Reducer Ring not included. Requires 0800 6150 099 Universal Outlet to fit 20 cm pipes or 0800 6150 098 Universal Outlets − see
489.0 page 82. 0800 6150 100 Universal Outlet does not fit this 0800 6150 076 Basin Side. For Flexible PVC Couplings, see page 86.
158.8
PLASTIC Specification: Catch Basin Side, Opening. Styrene.
NDS#1821 AI.eps

Part No. Part No. Wt. Ea.
460.4 25.4 US EMEA Description Color Pkg. Qty. (kg) EAN Code
1822 0800 6150 077 45.72 cm Catch Basin Side – 15.2 cm or 20.3 Black 4 1.69 0052063018225
241.3 cm Opening
158.8
Opening using Universal Outlet. Includes 0800 6150 084 Reducer Ring. Use with 0800 6150 094, 0800 6150 096, 0800 6150 097,
489.0 0800 6150 098 or 0800 6150 099 Universal Outlets − see page 82. For Flexible PVC Couplings, see page 86.
158.8
PLASTIC Specification: Catch Basin Side, Opening. Styrene.
NDS#1822 AI.eps

393.7 Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1828 0800 6150 078 45.72 cm Catch Basin Bottom Black 4 1.13 0052063018287
28.6
PLASTIC Specification: Catch Basin Bottom. Styrene

NDS#1828 AI.eps
