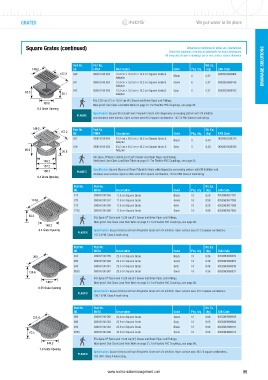

Page 99 - NORMA WM Drainage Catalogue EN

GRATES We put water in its place

Square Grates (continued) Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
149.2 US EMEA Description Color Pkg. Qty. (kg) EAN Code
157.2 640 0800 6180 053 15.2 cm x 15.2 cm x 10.2 cm Square Grate & Black 8 0.37 0052063606408
Adapter
641 0800 6180 054 15.2 cm x 15.2 cm x 10.2 cm Square Grate & Green 8 0.37 0052063606415
Adapter
63.5 642 0800 6180 055 15.2 cm x 15.2 cm x 10.2 cm Square Grate & Gray 8 0.37 0052063606422
38.1 Adapter
Fits 7.62 cm (3") or 10.16 cm (4") Sewer and Drain Pipes and Fittings.
100.0
Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
6.4 Grate Opening
Specification: Square Structural Foam Polyolefin Grate with diagonally converging pattern with UV inhibitor
PLASTIC
and stainless steel screws. Open surface area 93.2 square centimeters. 167.2 LPM. Class A load rating.
NDS#640 AI.eps
149.2 Part No. Part No. Wt. Ea.
157.2 US EMEA Description Color Pkg. Qty. (kg) EAN Code
637 0800 6180 051 15.2 cm x 15.2 cm x 15.2 cm Square Grate & Black 8 0.40 0052063536378
Adapter
639 0800 6180 052 15.2 cm x 15.2 cm x 15.2 cm Square Grate & Gray 8 0.40 0052063536392
69.9 Adapter
50.8
Fits Spee-D Basin and 15.24 cm (6") Sewer and Drain Pipes and Fittings.
®
149.2 Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
NDS#637.AI.eps
157.2
Specification: Square Structural Foam Polyolefin Grate with diagonally converging pattern with UV inhibitor and
166.7 PLASTIC
stainless steel screws. Open surface area 93.2 square centimeters. 167.2 LPM. Class A load rating.
6.4 Grate Opening
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
771 0800 6180 056 17.8 cm Square Grate Black 10 0.29 0052063677101
174.6 772 0800 6180 057 17.8 cm Square Grate Green 10 0.29 0052063677200
773 0800 6180 058 17.8 cm Square Grate Gray 10 0.29 0052063677309
773S 0800 6180 066 17.8 cm Square Grate Sand 10 0.29 0052063617305
60.3 Fits Spee-D Basin and 15.24 cm (6") Sewer and Drain Pipes and Fittings.
®
Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
149.2
NDS#771 AI.eps
6.4 Grate Opening Specification: Square Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 87.72 square centimeters.
PLASTIC
157.5 LPM. Class A load rating.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
200 881 0800 6180 059 20.3 cm Square Grate Black 10 0.36 0052063608815
882 0800 6180 060 20.3 cm Square Grate Green 10 0.36 0052063608822
883 0800 6180 061 20.3 cm Square Grate Gray 10 0.36 0052063608839
120.6 883S 0800 6180 067 20.3 cm Square Grate Sand 10 0.36 0052063008837
Fits Spee-D Basin and 15.24 cm (6") Sewer and Drain Pipes and Fittings.
®
149.2 Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
NDS#881 AI.eps
6.35 Grate Opening
Specification: Square Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 110.7 square centimeters.
PLASTIC
198.7 LPM. Class A load rating.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
225.4 950 0800 6180 062 22.9 cm Square Grate Green 10 0.50 0052063909509
960 0800 6180 063 22.9 cm Square Grate Gray 10 0.50 0052063909608
970 0800 6180 064 22.9 cm Square Grate Black 10 0.50 0052063909707
63.5 970S 0800 6180 068 22.9 cm Square Grate Sand 10 0.50 0052063909714
Fits Spee-D Basin and 15.24 cm (6") Sewer and Drain Pipes and Fittings.
®
149.2 Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
NDS#881 AI.eps
7.9 Grate Opening
PLASTIC Specification: Square Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 183.18 square centimeters.
329 LPM. Class A load rating.

www.norma-watermanagement.comww.norma-watermanagement.com w 99
