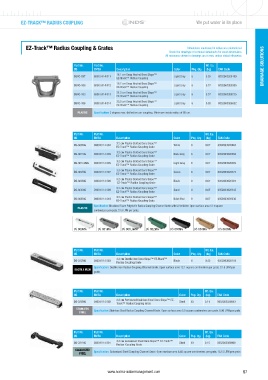

Page 67 - NORMA WM Drainage Catalogue EN

EZ-TRACK™ RADIUS COUPLING We put water in its place

EZ-Track™ Radius Coupling & Grates Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
16.1 cm Deep Neutral Dura Slope™
DSRC-097 0800 6114 011 Light Gray 6 0.36 0052063026190
EZ-Track™ Radius Coupling
18.7 cm Deep Neutral Dura Slope™
DSRC-100 0800 6114 012 Light Gray 6 0.37 0052063026206
EZ-Track™ Radius Coupling
21.3 cm Deep Neutral Dura Slope™
DSRC-103 0800 6114 013 Light Gray 6 0.37 0052063026275
EZ-Track™ Radius Coupling
23.8 cm Deep Neutral Dura Slope™
DSRC-106 0800 6114 014 Light Gray 6 0.38 0052063026282
EZ-Track™ Radius Coupling
PLASTIC Specification: 3 degree max. deflection per coupling. Minimum inside radius of 66 cm.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
DS-660MG 0800 6114 004 3.2 cm Plastic Slotted Dura Slope™ White 6 0.07 0052063026404
EZ-Track™ Radius Coupling Grate
3.2 cm Plastic Slotted Dura Slope™
DS-661MG 0800 6114 006 Dark Gray 6 0.07 0052063026398
EZ-Track™ Radius Coupling Grate
3.2 cm Plastic Slotted Dura Slope™
DS-661LGMG 0800 6114 005 Light Gray 6 0.07 0052063026305
EZ-Track™ Radius Coupling Grate
3.2 cm Plastic Slotted Dura Slope™
DS-662MG 0800 6114 007 Green 6 0.07 0052063026374
EZ-Track™ Radius Coupling Grate
3.2 cm Plastic Slotted Dura Slope™
DS-663MG 0800 6114 008 Black 6 0.07 0052063026367
EZ-Track™ Radius Coupling Grate
3.2 cm Plastic Slotted Dura Slope™
DS-664MG 0800 6114 009 Sand 6 0.07 0052063026343
EZ-Track™ Radius Coupling Grate
3.2 cm Plastic Slotted Dura Slope™
DS-665MG 0800 6114 010 Brick Red 6 0.07 0052063026336
EZ-Track™ Radius Coupling Grate
Specification: Structural Foam Polyolefin Radius Coupling Channel Grate with UV inhibitor. Open surface area 12.1 square
PLASTIC
centimeters per grate. 21.8 LPM per grate.
DS-660MG DS-661MG DS-661LGMG DS-662MG DS-663MG DS-664MG DS-665MG

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
3.2 cm Ductile Iron Dura Slope™ EZ-Track™
DS-232MG 0800 6114 003 Black 6 0.42 0052063026114
Radius Coupling Grate
Specification: Ductile Iron Radius Coupling Channel Grate. Open surface area 12.1 square centimeters per grate. 21.8 LPM per
DUCTILE IRON
grate.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
3.2 cm Perforated Stainless Steel Dura Slope™ EZ-
DS-226MG 0800 6114 002 Track™ Radius Coupling Grate Steel 10 0.11 0052063030883
STAINLESS Specification: Stainless Steel Radius Coupling Channel Grate. Open surface area 5.5 square centimeters per grate. 9.96 LPM per grate.
STEEL

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
DS-221MG 0800 6114 001 3.2 cm Galvanized Steel Dura Slope™ EZ-Track™ Steel 10 0.15 0052063030906
Radius Coupling Grate
GALVANIZED Specification: Galvanized Steel Coupling Channel Grate. Open surface area 8.45 square centimeters per grate. 15.15 LPM per grate.
STEEL
