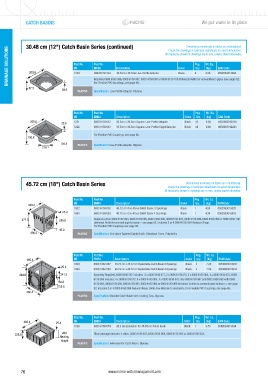

CATCH BASINS We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS 30.48 cm (12") Catch Basin Series (continued) All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Pkg.
Wt. Ea.
Part No.
Part No.
EMEA
Color
Description
US
(kg)
Qty.
EAN Code
209.6
8
0.56
0800 6150 046
Black
0052063012308
1230
30.5cm x 30.5cm Low-Profile Adapter
For Flexible PVC Couplings, see page 86.
87.3 28.6 PLASTIC Requires 0800 6150 096, 0800 6150 097, 0800 6150 098 or 0800 6150 100 Universal Outlet for connection to pipes (see page 82).
Specification: Low-Profile Adapter. Styrene
NDS#1230 AI.eps
Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
209.6 28.6 1221 0800 6150 042 30.5cm x 30.5cm Square. Low-Profile Adapter Black 12 0.86 0052063012216
1222 0800 6150 043 30.5cm x 30.5cm Square. Low-Profile Spigot Adapter Black 12 0.86 0052063012223
For Flexible PVC Couplings, see page 86.
150.8
104.8 PLASTIC Specification: Low-Profile Adapter. Styrene
219.1
NDS#1221 AI.eps
45.72 cm (18") Catch Basin Series Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
449.3
1882 0800 6150 082 45.72 cm One-Piece Catch Basin. 2 Openings Black 1 4.50 0052063018829
25.4 1884 0800 6150 083 45.72 cm One-Piece Catch Basin 4 Openings Black 1 4.34 0052063018843
471.5 285.8 Requires either 0800 6150 094, 0800 6150 095, 0800 6150 096, 0800 6150 097, 0800 6150 098, 0800 6150 099 or 0800 6150 100
Universal Outlet to connect pipe to basin − see page 82. Includes 2 or 4 0800 6150 084 Reducer Rings.
For Flexible PVC Couplings see page 86.
46.0
330.2 PLASTIC Specification: One-piece Tapered Catch Basin. Structural Foam. Polyolefin.
NDS#1882 AI.eps

Part No. Part No. Pkg. Wt. Ea.
460.4 US EMEA Description Color Qty. (kg) EAN Code
1800 0800 6150 067 45.72 cm x 45.72 cm Expandable Catch Basin 2 Openings Black 1 7.20 0052063018003
25.4
1804 0800 6150 068 45.72 cm x 45.72 cm Expandable Catch Basin 4 Openings Black 1 7.20 0052063018041
489.0 241.3 Assembly Required. 0800 6150 067 includes: 2 x 0800 6150 077, 2 x 0800 6150 075, 2 x 0800 6150 084, 1 x 0800 6150 078. 0800
6150 068 includes: 4 x 0800 6150 077, 4 x 0800 6150 084, 1 x 0800 6150 078. Use 0800 6150 067 and 0800 6150 068 with 0800
158.8 6150 094, 0800 6150 096, 0800 6150 097, 0800 6150 098 or 0800 6150 099 Universal Outlets to connect pipes to basin − see page
158.8
82. Includes 2 or 4 0800 6150 084 Reducer Rings. (Note: Use Silicone to seal joints.) For Flexible PVC Couplings, see page 86.
460.4
NDS#1800 AI.eps PLASTIC Specification: Modular Catch Basin with Locking Tabs. Styrene.

Part No. Part No. Pkg. Wt. Ea.
460.4 25.4 US EMEA Description Color Qty. (kg) EAN Code
1816 0800 6150 074 20.3 cm Extension for 45.72 cm Catch Basin Black 1 2.70 0052063018164
228.6 200 Riser package includes 4 sides. 0800 6150 067, 0800 6150 068, 0800 6150 082 or 0800 6150 083.
Nesting
Height
PLASTIC Specification: Extension for Catch Basin. Styrene.
NDS#1816 AI.eps
