CATCH BASINS We put water in its place

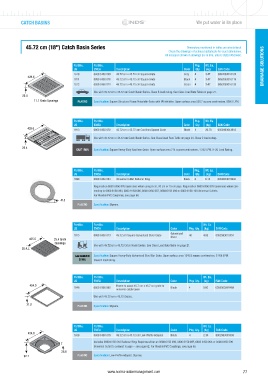

45.72 cm (18") Catch Basin Series Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Pkg. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Qty. (kg) EAN Code
1810 0800 6150 069 45.72 cm x 45.72 cm Square Grate Gray 4 3.47 0052063018102
428.6
1811 0800 6150 070 45.72 cm x 45.72 cm Square Grate Black 4 3.47 0052063018119
1812 0800 6150 071 45.72 cm x 45.72 cm Square Grate Green 4 3.47 0052063018126
Use with 45.72 cm x 45.72 cm Catch Basin Series. Class B load rating. See Class Load Rate Table on page 21.
25.4
NDS#1810 AI.eps
11.1 Grate Openings PLASTIC Specification: Square Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 556.7 square centimeters. 999.5 LPM.

Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
428.6 1813 0800 6150 072 45.72 cm x 45.72 cm Cast Iron Square Grate Black 1 20.70 0052063043913

Use with 45.72 cm x 45.72 cm Catch Basin Series. See Class Load Rate Table on page 21. Class C load rating.
25.4
CAST IRON Specification: Square Heavy-Duty Cast Iron Grate. Open surface area 714 square centimeters. 1 282 LPM. H-20 Load Rating.

Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
1890 0800 6150 084 Universal Outlet Reducer Ring Black 8 0.15 0052063018904
Required on 0800 6150 076 basin side when using 8 cm, 10 cm or 15 cm pipe. Required on 0800 6150 076 basin side when con-
necting to 0800 6150 094, 0800 6150 096, 0800 6150 097, 0800 6150 098 or 0800 6150 100 Universal Outlets.
For Flexible PVC Couplings, see page 86.
41.3
PLASTIC Specification: Styrene.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
Galvanized
1815 0800 6150 073 45.72 cm Square Galvanized Steel Grate Steel 40 4.85 0052063018157
425.5 25.4 Grate
Openings
Use with 45.72 cm x 45.72 Catch Basin Series. See Class Load Rate Table on page 21.
25.4
GALVANIZED Specification: Square Heavy-Duty Galvanized Steel Bar Grate. Open surface area 1545.5 square centimeters. 2 768 LPM.
STEEL Class D load rating.
NDS#1215 AI.eps

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
454.0 Frame to adapt 45.7 cm x 45.7 cm grate to
1840 0800 6150 080 Black 4 0.90 0052063018409
concrete catch basin
Use with 45.72 cm x 45.72 Grates.
31.8 PLASTIC Specification: Styrene.
NDS#1840 AI.eps

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
454.0
1830 0800 6150 079 45.72 cm x 45.72 cm Low-Profile Adapter Black 4 2.14 0052063018300
Includes 0800 6150 084 Reducer Ring. Requires either an 0800 6150 096, 0800 6150 097, 0800 6150 098 or 0800 6150 099
Universal Outlet to connect to pipe − see page 82. For Flexible PVC Couplings, see page 86.
28.6
92.1 NDS#1830 AI.eps PLASTIC Specification: Low-Profile Adapter. Styrene.
