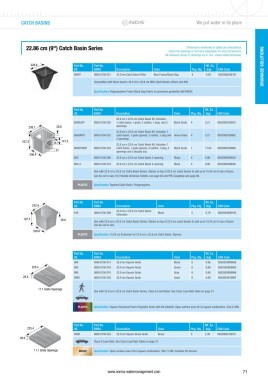

CATCH BASINS We put water in its place
22.86 cm (9") Catch Basin Series Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
228.6 Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
900FF 0800 6150 021 22.9 cm Catch Basin Filter Blue Frame/Black Bag 8 0.03 0052063058191
Compatible with these basins: 22.9 cm x 22.9 cm NDS Catch Basins, Risers and Kits
Specification: Polypropylene Frame Black Bag Fabric is nonwoven geotextile 956 PM/SF.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
22.9 cm x 22.9 cm Catch Basin Kit. Includes:
900BLKIT 0800 6150 020 1 catch basin, 1 grate, 2 outlets, 1 plug and 2 Black Grate 4 2.21 0052063030975
238.1 28.6 openings.
22.9 cm x 22.9 cm Catch Basin Kit. Includes: 1
900GRKIT 0800 6150 022 catch basin, 1 grate (green), 2 outlets, 1 plug and Green Grate 4 2.21 0052063030982
2 openings.
257.2 58.7 141.3
22.9 cm x 22.9 cm Catch Basin Kit. Includes: 1
900KITDISP 0800 6150 023 catch basin, 1 grate (green), 2 outlets, 1 plug, 2 Black Grate 1 17.64 0052063030968
27 openings and a display box.
206.4
NDS_1200_new.eps
900 0800 6150 006 22.9 cm x 22.9 cm Catch Basin 2-opening Black 4 0.98 0052063909004
900-4 0800 6150 019 22.9 cm x 22.9 cm Catch Basin 4-opening Black 4 0.90 0052063949000
Use with 22.9 cm x 22.9 cm Catch Basin Series. Stacks on top of 22.9 cm catch basins to add up to 15.24 cm to top of basin.
Can be cut to size. For Flexible Universal Outlets, see page 82 and PVC Couplings see page 86.
PLASTIC Specification: Tapered Catch Basin. Polypropylene.
Part No. Part No. Wt. Ea.
233.4 US EMEA Description Color Pkg. Qty. (kg) EAN Code
22.9 cm x 22.9 cm Catch Basin
916 0800 6150 009 Black 4 0.79 0052063909165
Extension
187.3 28.6
Use with 22.9 cm x 22.9 cm Catch Basin Series. Stacks on top of 22.9 cm catch basins to add up to 15.24 cm to top of basin.
Can be cut to size.
228.6
PLASTIC Specification: 15.24 cm Extension for 22.9 cm x 22.9 cm Catch Basin. Styrene.
NDS#916 AI.eps
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
980 0800 6150 014 22.9 cm Square Grate Black 8 0.68 0052063909806
225.4 990 0800 6150 016 22.9 cm Square Grate Green 8 0.68 0052063909905
999 0800 6150 018 22.9 cm Square Grate Gray 8 0.68 0052063909998
28.6 999S 0800 6150 025 22.9 cm Square Grate Sand 8 0.68 0052063919997
11.1 Grate Openings
Use with 22.9 cm x 22.9 cm Catch Basin Series. Class A Load Rated. See Class Load Rate Table on page 21.
PLASTIC Specification: Square Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 241.8 square centimeters. 434.2 LPM.
Part No. Part No. Wt. Ea.
225.4 US EMEA Description Color Pkg. Qty. (kg) EAN Code
930B 0800 6150 024 22.9 cm Square Brass Grate Brass 3 2.30 0052063018072
28.6
Class B Load Rate. See Class Load Rate Table on page 21.
11.1 Grate Openings BRASS Specification: Open surface area 219.3 square centimeters. 393.7 LPM. Includes SS Screws.
