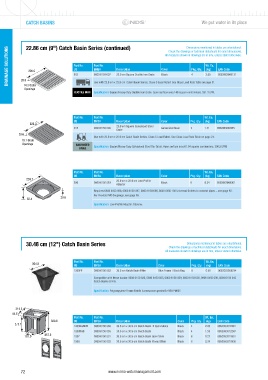

Page 72 - NORMA WM Drainage Catalogue EN

CATCH BASINS We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS 22.86 cm (9") Catch Basin Series (continued) Color Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No.
Wt. Ea.
Part No.
Pkg. Qty.
EMEA
Description
US
(kg)
EAN Code
228.6
4
0800 6150 007
913
Black
22.9 cm Square Ductile Iron Grate
0052063009131
3.55
28.6
14.3 Grate
Openings Use with 22.9 cm x 22.9 cm Catch Basin Series. Class C Load Rated. See Class Load Rate Table on page 21.
DUCTILE IRON Specification: Square Heavy-Duty Ductile Iron Grate. Open surface area 140 square centimeters. 251.3 LPM.
NDS#913 AI.eps
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
222.3
915 0800 6150 008 22.9 cm Square Galvanized Steel Galvanized Steel 1 1.71 0052063009155
Grate
28.6
Use with 22.9 cm x 22.9 cm Catch Basin Series. Class C Load Rated. See Class Load Rate Table on page 21.
19.1 Grate
Openings GALVINIZED
STEEL Specification: Square Heavy-Duty Galvanized Steel Bar Grate. Open surface area 61.94 square centimeters. 399.5 LPM.
NDS#915 AI.eps
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
239.7 22.9 cm x 22.9 cm Low-Profile
930 0800 6150 010 Black 8 0.34 0052063909301
Adapter
Requires 0800 6150 096, 0800 6150 097, 0800 6150 098, 0800 6150 100 Universal Outlets to connect pipes − see page 82.
For Flexible PVC Couplings, see page 86.
52.4 28.6
NDS#930 AI.eps
Specification: Low-Profile Adapter. Styrene.

30.48 cm (12") Catch Basin Series Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea.
304.8 US EMEA Description Color Pkg. Qty. (kg) EAN Code
1200FF 0800 6150 052 30.5 cm Catch Basin Filter Blue Frame / Black Bag 8 0.05 0052063058214
Compatible with these basins: 0800 6150 028, 0800 6150 055, 0800 6150 029, 0800 6150 038, 0800 6150 039, 0800 6150 045
Catch Basins & Kits.

Specification: Polypropylene Frame Fabric is nonwoven geotextile 956 PM/SF.

314.3
44.5
Part No. Part No. Wt. Ea.
328.6 US EMEA Description Color Pkg. Qty. (kg) EAN Code
273.1
1200NGBKIT 0800 6150 056 30.5 cm x 30.5 cm Catch Basin. 2 Open Slides Black 4 2.09 0052063012261
1200NGB 0800 6150 055 30.5 cm x 30.5 cm Catch Basin Black 4 1.55 0052063012247
181.0 257.2 1207 0800 6150 031 30.5 cm x 30.5 cm Catch Basin Open Slide Black 8 0.27 0052063011851
1208 0800 6150 032 30.5 cm x 30.5 cm Catch Basin Closed Slide Black 8 0.34 0052063011936
