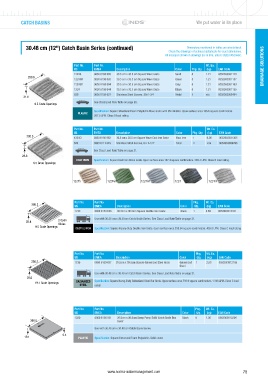

Page 75 - NORMA WM Drainage Catalogue EN

CATCH BASINS We put water in its place

30.48 cm (12") Catch Basin Series (continued) Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1224S 0800 6150 065 30.5 cm x 30.5 cm Square Wave Grate Sand 8 1.21 0052063031170
209.6
1224GR 0800 6150 063 30.5 cm x 30.5 cm Square Wave Grate Green 8 1.21 0052063031187
1224GY 0800 6150 064 30.5 cm x 30.5 cm Square Wave Grate Gray 8 1.21 0052063031163
1224 0800 6150 044 30.5 cm x 30.5 cm Square Wave Grate Black 8 1.21 0052063031156
839 0800 6150 027 Stainless Steel Screws. 20x1-3/4 Metal 1 n/a 0052063056494
31.8
See Class Load Rate Table on page 21.
9.5 Grate Openings
Specification: Square Structural Foam Polyolefin Wave Grate with UV inhibitor. Open surface area 165.6 square centimeters.
PLASTIC
297.3 LPM. Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
300.0 1224CI 0800 6150 062 30.5 cm x 30.5 cm Square Wave Cast Iron Grate Raw Iron 1 6.26 0052063031385
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
See Class Load Rate Table on page 21.
28.6
CAST IRON Specification: Square Cast Iron Wave Grate. Open surface area 167.4 square centimeters. 296.4 LPM. Class B load rating.
9.5 Grate Openings

1224S 1224GR 1224GY 1224 1224CI

Part No. Part No. Pkg. Wt. Ea.
295.3
US EMEA Description Color Qty. (kg) EAN Code
1213 0800 6150 036 30.5cm x 30.5cm Square Ductile Iron Grate Black 1 6.89 0052063012131
25.4 2 Open Use with 30.48 cm x 30.48 cm Catch Basin Series. See Class Load Rate Table on page 21.
Slides
9.5 Grate Openings DUCTILE IRON Specification: Square Heavy-Duty Ductile Iron Grate. Open surface area 239.94 square centimeters. 430.8 LPM. Class C load rating
NDS#913 AI.eps

Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
295.3 1215 0800 6150 037 30.5cm x 30.5cm Square Galvanized Steel Grate Galvanized 1 2.63 0052063012155
Steel
Use with 30.48 cm x 30.48 cm Catch Basin Series. See Class Load Rate Table on page 21.
28.6
NDS#1215 AI.eps
19.1 Grate Openings GALVANIZED Specification: Square Heavy-Duty Galvanized Steel Bar Grate. Open surface area 733.9 square centimeters. 1 318 LPM. Class C load
STEEL rated

Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
1220 0800 6150 041 30.5cm x 30.5cm Sump Pump Solid Catch Basin Box Black 8 1.00 0052063012209
200.0 Cover
Use with 30.48 cm x 30.48 cm Catch Basin Series.
6.4
19.1 PLASTIC Specification: Square Structural Foam Polyolefin. Solid cover.
