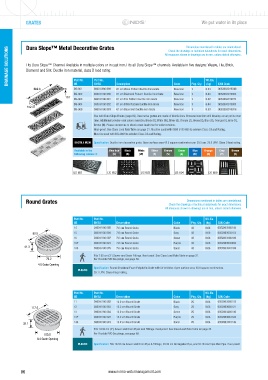

Page 96 - NORMA WM Drainage Catalogue EN

GRATES We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS Dura Slope™ Metal Decorative Grates All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Fits Dura Slope™ Channel. Available in multiple colors or in cast iron. Fits all Dura Slope™ channels. Available in five designs: Weave, Tile, Brick,
Diamond and Slot. Ductile iron material, class D load rating.

EMEA
US
(kg)
Raw Iron
6.53
61 cm Wave Pattern Ductile Iron Grate
DS-601
1
0052063019840
609.6 Part No. Part No. Description Color Pkg. Qty. Wt. Ea. EAN Code
0800 6180 089
DS-602 0800 6180 090 61 cm Diamond Pattern Ductile Iron Grate Raw Iron 1 6.44 0052063019864
19.1
DS-603 0800 6180 091 61 cm Tile Pattern Ductile Iron Grate Raw Iron 1 6.62 0052063019871
DS-604 0800 6180 092 61 cm Brick Pattern Ductile Iron Grate Raw Iron 1 6.44 0052063019901
152.4
DS-609 0800 6180 093 61 cm Deco Slot Ductile Iron Grate Raw Iron 1 6.53 0052063019918
Use with Dura Slope Drains (page 60). Decorative grates are made of ductile iron. Uncoated raw iron will develop a rust patina over
time. Additional powder-coat colors available: Black (K), White (W), Silver (S), Bronze (Z), Green (G), Blue (B), Orange (O), Gray (Y),
Brown (N). Please contact us to check exact lead time for color versions.
Heel-proof. See Class Load Rate Table on page 21. Must be used with 0800 6113 005 to achieve Class D Load Rating.
Must be used with DS-200H to acheive Class D Load Rating.
DUCTILE IRON Specification: Ductile iron decorative grate. Open surface area 43.5 square centimeters per 30.5 cm. 78.2 LPM. Class D load rating.
Available in the Raw Iron Black White Silver Bronze Green Blue Orange Gray Brown
following colours  (K) (K) (W) (S) (S) (G) (B) (O) (Y) (N)
DS-601 DS-602 DS-603 DS-604 DS-609

Round Grates Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
14 0800 6180 005 7.6 cm Round Grate Black 40 0.06 0052063300146
90.5 15 0800 6180 006 7.6 cm Round Grate Gray 40 0.06 0052063530154
16 0800 6180 007 7.6 cm Round Grate Green 40 0.06 0052063300160
16P 0800 6180 024 7.6 cm Round Grate Purple 40 0.06 0052063030890
41.3 16S 0800 6180 025 7.6 cm Round Grate Sand 40 0.06 0052063310169
Fits 7.62 cm (3") Sewer and Drain Fittings. Heel-proof. See Class Load Rate Table on page 21.
76.2 For Flexible PVC Couplings, see page 86.
NDS#14 AI.eps
4.8 Grate Opening
Specification: Round Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 16.8 square centimeters.
PLASTIC
30.1 LPM. Class A load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
11 0800 6180 002 10.2 cm Round Grate Black 25 0.08 0052063400112
117.5 12 0800 6180 003 10.2 cm Round Grate Gray 25 0.08 0052063000121
13 0800 6180 004 10.2 cm Round Grate Green 25 0.08 0052063400136
13P 0800 6180 022 10.2 cm Round Grate Purple 25 0.08 0052063010786
38.1 13S 0800 6180 023 10.2 cm Round Grate Sand 25 0.08 0052063410135
Fits 10.16 cm (4") Sewer and Drain Pipes and Fittings. Heel-proof. See Class Load Rate Table on page 21.
100.0 For Flexible PVC Couplings, see page 86.
NDS#11 AI.eps
6.4 Grate Opening
PLASTIC Specification: Fits 10.16 cm Sewer and Drain Pipe & Fittings, 10.16 cm Corrugated Pipe, and 10.16 cm Triple Wall Pipe. Heel-proof.
