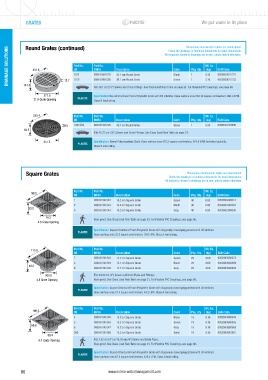

GRATES We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS Round Grates (continued) Part No. Description All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Part No.
Wt. Ea.
(kg)
US
Color
EMEA
Pkg. Qty.
EAN Code
431.8
1511
0052063015118
Black
1
3.10
0800 6180 019
38.1 cm Round Grate
Green
0800 6180 020
1512
0052063015125
38.1 cm Round Grate
3.10
1
12.7
114.3
Fits 38.1 cm (15") Sewer and Drain Fittings. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
377.8 Specification: Round Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 552.12 square centimeters. 991.2 LPM.
NDS# 1513
31.8 Grate Opening PLASTIC Class B load rating.
533.4 Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
9.5 1801SDG 0800 6180 026 45.7 cm Round Grate Green 1 3.38 0096942740609
63.5
Fits 45.72 cm (18") Sewer and Drain Fittings. See Class Load Rate Table on page 21.
457.2 Specification: Round Polypropylene Grate. Open surface area 487.3 square centimeters. 874.8 LPM. Includes lag bolts.
PLASTIC
Class B load rating
Square Grates Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
Part No. Part No. Wt. Ea.
90.5
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1 0800 6180 042 10.2 cm Square Grate Green 40 0.05 0052063400013
2 0800 6180 043 10.2 cm Square Grate Black 40 0.05 0052063402024
33.3
3 0800 6180 044 10.2 cm Square Grate Gray 40 0.05 0052063300030
76.2
NDS#01 AI.eps Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
4.8 Grate Opening
Specification: Square Structural Foam Polyolefin Grate with diagonally converging pattern with UV inhibitor.
PLASTIC
Open surface area 22.3 square centimeters. 39.9 LPM. Class A load rating.
115.9 Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
7 0800 6180 048 12.7 cm Square Grate Green 25 0.09 0052063500072
8 0800 6180 049 12.7 cm Square Grate Black 25 0.09 0052063500089
46.0
9 0800 6180 050 12.7 cm Square Grate Gray 25 0.09 0052063500058
100.0
NDS#07 AI.eps Fits 10.16 cm (4") Sewer and Drain Pipes and Fittings.
4.8 Grate Opening Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
Specification: Square Structural Foam Polyolefin Grate with diagonally converging pattern with UV inhibitor.
PLASTIC
Open surface area 27.4 square centimeters. 49.2 LPM. Class A load rating.

Part No. Part No. Wt. Ea.
149.2 US EMEA Description Color Pkg. Qty. (kg) EAN Code
4 0800 6180 045 15.2 cm Square Grate Black 10 0.18 0052063600048
5 0800 6180 046 15.2 cm Square Grate Green 10 0.18 0052063600055
50.8
6 0800 6180 047 15.2 cm Square Grate Gray 10 0.18 0052063600062
06S 0800 6180 065 15.2 cm Square Grate Sand 10 0.18 0052063610061
98.4
NDS#04 AI.eps
6.4 Grate Opening Fits 7.62 cm (3") or 10.16 cm (4") Sewer and Drain Pipes.
Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
Specification: Square Structural Foam Polyolefin Grate with diagonally converging pattern with UV inhibitor.
PLASTIC
Open surface area 67.1 square centimeters. 120.4 LPM. Class A load rating.
