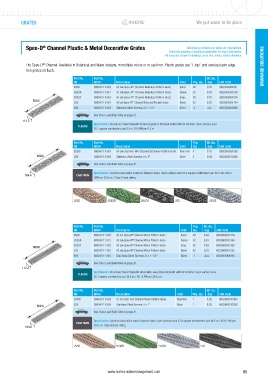

Page 95 - NORMA WM Drainage Catalogue EN

GRATES We put water in its place

Spee-D Channel Plastic & Metal Decorative Grates Dimensions mentioned in tables are orientational.
®
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
Fits Spee-D Channel. Available in Botanical and Wave designs, in multiple colors or in cast iron. Plastic grates are "T-top" and overlap basin edge. NORMACLAMP ® DRAINAGE SOLUTIONS
®
Iron grates sit flush.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
®
252S 0800 6111 019 61 cm Spee-D Channel Botanical Pattern Grate Sand 12 0.78 0052063031231
252GR 0800 6111 017 61 cm Spee-D Channel Botanical Pattern Grate Green 12 0.78 0052063031248
®
®
252GY 0800 6111 018 61 cm Spee-D Channel Botanical Pattern Grate Gray 12 0.78 0052063031224
609.6 252 0800 6111 014 61 cm Spee-D Channel Botanical Pattern Grate Black 12 0.78 0052063031194
®
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
See Class Load Rate Table on page 21.
112.2
Specification: Structural Foam Polyolefin botanical pattern Channel Grate with UV inhibitor. Open surface area
PLASTIC
35.1 square centimeters per 0.3 m. 63 LPM per 0.3 m.
Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
252CI 0800 6111 016 61 cm Cast Iron Mini Channel Botanical Pattern Grate Raw Iron 1 3.18 0052063031392
609.6 229 0800 6111 050 Stainless Steel Screws. 8 x 1” Steel 1 0.03 0052063812298
See Class Load Rate Table on page 21.
Specification: Cast Iron decorative botanical Channel Grate. Open surface area 57.9 square centimeters per 30.5 cm. 104.1
104.6 CAST IRON
LPM per 30.5 cm. Class B load rating.

252S 252GR 252GY 252 252CI

Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
®
253S 0800 6111 023 61 cm Spee-D Channel Wave Pattern Grate Sand 12 0.83 0052063031279
253GR 0800 6111 021 61 cm Spee-D Channel Wave Pattern Grate Green 12 0.83 0052063031286
®
®
609.6 253GY 0800 6111 022 61 cm Spee-D Channel Wave Pattern Grate Gray 12 0.83 0052063031262
®
253 0800 6111 012 61 cm Spee-D Channel Wave Pattern Grate Black 12 0.83 0052063031255
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
See Class Load Rate Table on page 21.
112.2
Specification: Structural Foam Polyolefin decorative wave Channel Grate with UV inhibitor. Open surface area
PLASTIC
50.1 square centimeters per 30.5 cm. 90.1 LPM per 30.5 cm.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
253CI 0800 6111 020 61 cm Cast Iron Channel Wave Pattern Grate Raw Iron 1 3.38 0052063031408
609.6 229 0800 6111 050 Stainless Steel Screws. 8 x 1” Steel 1 0.03 0052063812298
See Class Load Rate Table on page 21.
Specification: Cast Iron decorative wave Channel Grate. Open surface area 47.8 square centimeters per 30.5 cm. 85.8 LPM per
CAST IRON
104.6 30.5 cm. Class B load rating.

253S 253GR 253GY 253
