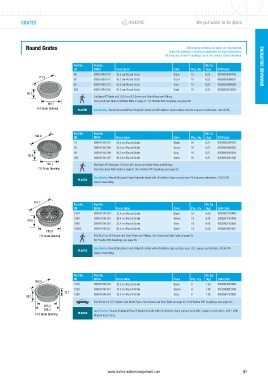

GRATES We put water in its place

Round Grates Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
40 0800 6180 010 15.2 cm Round Grate Black 10 0.22 0052063600406
171.5
50 0800 6180 011 15.2 cm Round Grate Green 10 0.22 0052063606507
60 0800 6180 012 15.2 cm Round Grate Gray 10 0.22 0052063606606
60S 0800 6180 028 15.2 cm Round Grate Sand 10 0.22 0052063616605
60.3
Fits Spee-D Basin and 15.24 cm (6") Sewer and Drain Pipes and Fittings.
®
Heel-proof. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
146.1
NDS#1240 AI.eps
6.4 Grate Opening PLASTIC Specification: Round Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 58.7 square centimeters. 105.4 LPM.

Part No. Part No. Wt. Ea.
196.9 US EMEA Description Color Pkg. Qty. (kg) EAN Code
10 0800 6180 001 20.3 cm Round Grate Black 10 0.27 0052063800103
20 0800 6180 008 20.3 cm Round Grate Green 10 0.27 0052063800202
30 0800 6180 009 20.3 cm Round Grate Gray 10 0.27 0052063800301
63.5
30S 0800 6180 027 20.3 cm Round Grate Sand 10 0.27 0052063801308
NDS#10 AI.eps
146.1 Fits Spee-D Basin and 15.24 cm (6") Sewer and Drain Pipes and Fittings.
®
7.9 Grate Opening See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
Specification: Round Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 74.2 square centimeters. 133.2 LPM.
PLASTIC
Class A load rating.

247.7
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1040 0800 6180 013 25.4 cm Round Grate Black 10 0.45 0052063110400
1050 0800 6180 014 25.4 cm Round Grate Green 10 0.45 0052063110509
69.9
1060 0800 6180 015 25.4 cm Round Grate Gray 10 0.45 0052063110608
1060S 0800 6180 021 25.4 cm Round Grate Sand 10 0.45 0052063010601
NDS#1040 AI.eps
196.9
7.9 Grate Opening Fits 20.32 cm (8") Sewer and Drain Pipes and Fittings. See Class Load Rate Table on page 21.
For Flexible PVC Couplings, see page 86.
Specification: Round Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 139.1 square centimeters. 249.8 LPM.
PLASTIC
Class A load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
360.4
1240 0800 6180 016 30.5 cm Round Grate Black 6 1.10 0052063012605
1250 0800 6180 017 30.5 cm Round Grate Green 6 1.10 0052063012506
12.7 1260 0800 6180 018 30.5 cm Round Grate Gray 6 1.10 0052063112602
92.1
Fits 30.48 cm (12") Sewer and Drain Pipes. See Class Load Rate Table on page 21. For Flexible PVC Couplings, see page 86.
NDS#1240 AI.eps
295.3
298.5 Specification: Round Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 296.7 square centimeters. 532.7 LPM.
14.3 Grate Opening PLASTIC Class B load rating.

www.norma-watermanagement.com www.norma-watermanagement.com 97
