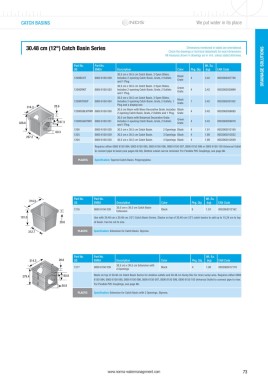

CATCH BASINS We put water in its place

30.48 cm (12") Catch Basin Series Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Part No. Part No. Wt. Ea. NORMACLAMP ® DRAINAGE SOLUTIONS
US EMEA Description Color Pkg. Qty. (kg) EAN Code
30.5 cm x 30.5 cm Catch Basin. 2 Open Slides.
1200BLKIT 0800 6150 049 Includes 2-opening Catch Basin, Grate, 2 Outlets Black 4 3.42 0052063027746
Grate
and 1 Plug.
30.5 cm x 30.5 cm Catch Basin. 2 Open Slides. Green
1200GRKIT 0800 6150 053 Includes 2-opening Catch Basin, Grate, 2 Outlets Grate 4 3.42 0052063030999
and 1 Plug.
30.5 cm x 30.5 cm Catch Basin. 2 Open Slides.
1200KITDISP 0800 6150 054 Includes 2-opening Catch Basin, Grate, 2 Outlets, 1 Black 1 3.42 0052063031002
Grate
314.3 28.6 Plug and a display box
1200DGBLKITWH 0800 6150 050 30.5 cm Basin with Wave Decorative Grate. Includes Black 4 3.42 0052063058085
2-opening Catch Basin, Grate, 2 Outlets and 1 Plug. Grate
30.5 cm Basin with Botanical Decorative Grate. Green
328.6 95.3 187.3 1200DGGKITWH 0800 6150 051 Includes 2-opening Catch Basin, Grate, 2 Outlets Grate 4 3.42 0052063058078
and 1 Plug.
1200 0800 6150 028 30.5 cm x 30.5 cm Catch Basin. 2 Openings Black 4 1.91 0052063012100
60.3 1203 0800 6150 029 30.5 cm x 30.5 cm Catch Basin. 3 Openings Black 4 1.69 0052063012032
257.2
1204 0800 6150 030 30.5 cm x 30.5 cm Catch Basin. 4 Openings Black 4 1.69 0052063012049
NDS_1200_new.eps
Requires either 0800 6150 094, 0800 6150 095, 0800 6150 096, 0800 6150 097, 0800 6150 098 or 0800 6150 100 Universal Outlet
to connect pipe to basin (see pages 82-83). Bottom cutout can be removed. For Flexible PVC Couplings, see page 86.
PLASTIC Specification: Tapered Catch Basin. Polypropylene.

Part No. Part No. Wt. Ea.
314.3
US EMEA Description Color Pkg. Qty. (kg) EAN Code
30.5 cm x 30.5 cm Catch Basin
1216 0800 6150 038 Black 8 1.24 0052063012162
Extension
181.0 Use with 30.48 cm x 30.48 cm (12") Catch Basin Series. Stacks on top of 30.48 cm (12") catch basins to add up to 15.24 cm to top
28.6 ofbasin. Can be cut to size.

312.7 PLASTIC Specification: Extension for Catch Basin. Styrene.
NDS#916 AI.eps

Part No. Part No. Wt. Ea.
314.3 28.6 US EMEA Description Color Pkg. Qty. (kg) EAN Code
30.5 cm x 30.5 cm Extension with
1217 0800 6150 039 Black 4 1.80 0052063012179
2 Openings
279.4 150.8 Nests on top of 30.48 cm Catch Basin Series for shallow outlets and 30.48 cm Sump Box for more sump area. Requires either 0800
6150 094, 0800 6150 095, 0800 6150 096, 0800 6150 097, 0800 6150 098, 0800 6150 100 Universal Outlet to connect pipe to riser.
50.8 For Flexible PVC Couplings, see page 86.
PLASTIC Specification: Extension for Catch Basin with 2 Openings. Styrene.
NDS#1217 AI.eps
