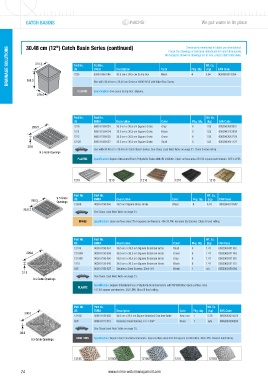

Page 74 - NORMA WM Drainage Catalogue EN

CATCH BASINS We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS 30.48 cm (12") Catch Basin Series (continued) Color Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.
314.3
Part No.
Part No.
Wt. Ea.
Pkg. Qty.
US
(kg)
EMEA
EAN Code
Description
30.5 cm x 30.5 cm Sump Box
Black
0800 6150 045
1225
3.04
4
0052063012254
368.3
Specification: One-piece Sump Box. Styrene.
PLASTIC Use with 30.48 cm x 30.48 cm Grate or 0800 6150 041 Valve Box Cover.
279.4
NDS#1225 AI.eps
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
298.5 1210 0800 6150 033 30.5 cm x 30.5 cm Square Grate Gray 8 1.05 0052063012001
1211 0800 6150 034 30.5 cm x 30.5 cm Square Grate Black 8 1.05 0052063112619
1212 0800 6150 035 30.5 cm x 30.5 cm Square Grate Green 8 1.05 0052063012124
1212S 0800 6150 057 30.5 cm x 30.5 cm Square Grate Sand 8 1.05 0052063011127
28.6
Use with 30.48 cm x 30.48 cm Catch Basin Series. See Class Load Rate Table on page 21. Class B load rating.
NDS#1210 AI.eps
9.5 Grate Openings
PLASTIC Specification: Square Structural Foam Polyolefin Grate with UV inhibitor. Open surface area 371.52 square centimeters. 587.8 LPM.
1210 1210 1210 1210 1210

Part No. Part No. Wt. Ea.
9.5 Grate
298.5 Openings US EMEA Description Color Pkg. Qty. (kg) EAN Code
1230B 0800 6150 066 30.5 cm Square Brass Grate Brass 4 4.16 0052063019307
28.6
See Class Load Rate Table on page 21.
BRASS Specification: Open surface area 276.5 square centimeters. 496.3 LPM. Includes SS Screws. Class B load rating.
NDS#1210 AI.eps

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1218S 0800 6150 061 30.5 cm x 30.5 cm Square Botanical Grate Sand 8 1.47 0052063031132
209.6 1218GR 0800 6150 059 30.5 cm x 30.5 cm Square Botanical Grate Green 8 1.47 0052063031149
1218GY 0800 6150 060 30.5 cm x 30.5 cm Square Botanical Grate Gray 8 1.47 0052063031125
1218 0800 6150 040 30.5 cm x 30.5 cm Square Botanical Grate Black 8 1.47 0052063031118
839 0800 6150 027 Stainless Steel Screws. 20x1-3/4 Metal 1 n/a 0052063056494
31.8
See Class Load Rate Table on page 21.
9.5 Grate Openings
Specification: Square Structural Foam Polyolefin Botanical Grate with UV inhibitor. Open surface area
PLASTIC
157.64 square centimeters. 283 LPM. Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
300.0
1218CI 0800 6150 058 30.5 cm x 30.5 cm Square Botanical Cast Iron Grate Raw Iron 1 5.70 0052063031378
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
See Class Load Rate Table on page 21.
28.6
9.5 Grate Openings CAST IRON Specification: Square Cast Iron Botanical Grate. Open surface area 157.64 square centimeters. 283 LPM. Class B load rating.

1218S 1218GR 1218GY 1218 1218CI
