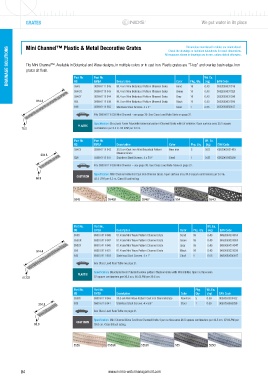

GRATES We put water in its place

Dimensions mentioned in tables are orientational.
DRAINAGE SOLUTIONS Mini Channel™ Plastic & Metal Decorative Grates All measures shown in drawings are in mm, unless stated otherwise.
Check the drawings or technical datasheets for exact dimensions.

Fits Mini Channel™. Available in Botanical and Wave designs, in multiple colors or in cast iron. Plastic grates are "T-top" and overlap basin edge. Iron
grates sit flush.
Part No.
Wt. Ea.
Part No.
US
91.4 cm Mini Botanical Pattern Channel Grate
Sand
554S
0800 6111 045
16
0.40
0052063031316
0800 6111 043
0.40
16
554GR EMEA Description Color Pkg. Qty. (kg) EAN Code
0052063031323
91.4 cm Mini Botanical Pattern Channel Grate
Green
554GY 0800 6111 044 91.4 cm Mini Botanical Pattern Channel Grate Gray 16 0.40 0052063031309
914.4 554 0800 6111 038 91.4 cm Mini Botanical Pattern Channel Grate Black 16 0.40 0052063031293
846 0800 6111 003 Stainless Steel Screws. 4 x 1" Steel 1 0.05 0052063056487
Fits 0800 6111 036 Mini Channel - see page 30. See Class Load Rate Table on page 21.
Specification: Structural Foam Polyolefin botanical pattern Channel Grate with UV inhibitor. Open surface area 35.1 square
PLASTIC
78.2 centimeters per 0.3 m. 63 LPM per 0.3 m.
Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
554CI 0800 6111 042 30.5 cm Cast Iron Mini Botanical Pattern Raw Iron 5 0.82 0052063031415
Channel Grate
304.8
529 0800 6113 041 Stainless Steel Screws. 4 x 5/8" Steel 1 0.05 0052063605296
Fits 0800 6111 036 Mini Channel − see page 30. See Class Load Rate Table on page 21.
Specification: Mini Channel botanical Cast Iron Channel Grate. Open surface area 34.8 square centimeters per 0.3 m.
CAST IRON
69.9 62.4 LPM per 0.3 m. Class B load rating.
554S 554GR 554GY 554 554CI

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
555S 0800 6111 049 91.4 cm Mini Wave Pattern Channel Grate Sand 16 0.40 0052063031354
555GR 0800 6111 047 91.4 cm Mini Wave Pattern Channel Grate Green 16 0.40 0052063031361
555GY 0800 6111 048 91.4 cm Mini Wave Pattern Channel Grate Gray 16 0.40 0052063031347
914.4 555 0800 6111 001 91.4 cm Mini Wave Pattern Channel Grate Black 16 0.40 0052063031330
846 0800 6111 003 Stainless Steel Screws. 4 x 1" Steel 1 0.05 0052063056487
See Class Load Rate Table on page 21.

Specification: Structural Foam Polyolefin wave pattern Channel Grate with UV inhibitor. Open surface area
PLASTIC
78.232 37 square centimeters per 30.5 cm. 66.4 LPM per 30.5 cm.

Part No. Part No. Pkg. Wt. Ea.
US EMEA Description Color Qty. (kg) EAN Code
555CI 0800 6111 046 30.5 cm Mini Wave Pattern Cast Iron Channel Grate Raw Iron 5 0.59 0052063031422
304.8 529 0800 6113 041 Stainless Steel Screws. 4 x 5/8" Steel 1 0.05 0052063605296
See Class Load Rate Table on page 21.
Specification: Mini Channel Wave Cast Iron Channel Grate. Open surface area 26.5 square centimeters per 30.5 cm. 47.9 LPM per
CAST IRON
69.9 30.5 cm. Class B load rating.

555S 555GR 555GY 555 555CI
