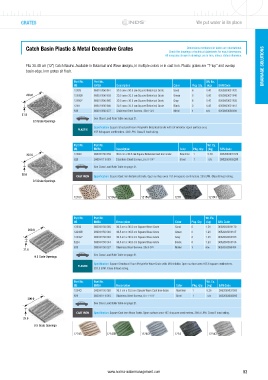

GRATES We put water in its place

Catch Basin Plastic & Metal Decorative Grates Dimensions mentioned in tables are orientational.
Check the drawings or technical datasheets for exact dimensions.
All measures shown in drawings are in mm, unless stated otherwise.

Fits 30.48 cm (12") Catch Basins. Available in Botanical and Wave designs, in multiple colors or in cast iron. Plastic grates are "T-top" and overlap NORMACLAMP ® DRAINAGE SOLUTIONS
basin edge. Iron grates sit flush.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1218S 0800 6150 061 30.5 cm x 30.5 cm Square Botanical Grate Sand 8 1.47 0052063031132
209.6 1218GR 0800 6150 059 30.5 cm x 30.5 cm Square Botanical Grate Green 8 1.47 0052063031149
1218GY 0800 6150 060 30.5 cm x 30.5 cm Square Botanical Grate Gray 8 1.47 0052063031125
1218 0800 6150 040 30.5 cm x 30.5 cm Square Botanical Grate Black 8 1.47 0052063031118
839 0800 6150 027 Stainless Steel Screws. 20x1-3/4 Metal 1 n/a 0052063056494
31.8
See Class Load Rate Table on page 21.
9.5 Grate Openings
Specification: Square Structural Foam Polyolefin Botanical Grate with UV inhibitor. Open surface area
PLASTIC
157.64 square centimeters. 283 LPM. Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
300.0 1218CI 0800 6150 058 30.5 cm x 30.5 cm Square Botanical Cast Iron Grate Raw Iron 1 5.70 0052063031378
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
See Class Load Rate Table on page 21.
28.6
CAST IRON Specification: Square Cast Iron Botanical Grate. Open surface area 157.64 square centimeters. 283 LPM. Class B load rating.
9.5 Grate Openings

1218S 1218GR 1218GY 1218 1218CI

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1224S 0800 6150 065 30.5 cm x 30.5 cm Square Wave Grate Sand 8 1.21 0052063031170
209.6
1224GR 0800 6150 063 30.5 cm x 30.5 cm Square Wave Grate Green 8 1.21 0052063031187
1224GY 0800 6150 064 30.5 cm x 30.5 cm Square Wave Grate Gray 8 1.21 0052063031163
1224 0800 6150 044 30.5 cm x 30.5 cm Square Wave Grate Black 8 1.21 0052063031156
839 0800 6150 027 Stainless Steel Screws. 20x1-3/4 Metal 1 n/a 0052063056494
31.8
9.5 Grate Openings See Class Load Rate Table on page 21.
Specification: Square Structural Foam Polyolefin Wave Grate with UV inhibitor. Open surface area 165.6 square centimeters.
PLASTIC
297.3 LPM. Class B load rating.

Part No. Part No. Wt. Ea.
US EMEA Description Color Pkg. Qty. (kg) EAN Code
1224CI 0800 6150 062 30.5 cm x 30.5 cm Square Wave Cast Iron Grate Raw Iron 1 6.26 0052063031385
829 0800 6111 015 Stainless Steel Screws, 6 x 1-1/4" Steel 1 n/a 0052063008295
300.0
See Class Load Rate Table on page 21.
CAST IRON Specification: Square Cast Iron Wave Grate. Open surface area 167.4 square centimeters. 296.4 LPM. Class B load rating.
28.6
9.5 Grate Openings
1224S 1224GR 1224GY 1224 1224CI
